Product Details
Batteries Included: N/A
Battery Duration: N/A
Battery Type: N/A
Condition: Used
DC Amps: N/A
DC Bus Voltage: N/A

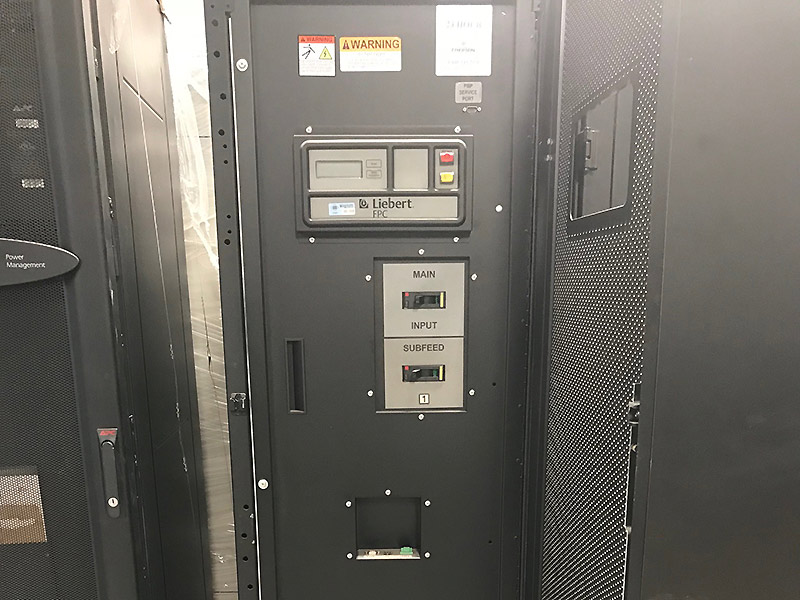

Ext. Notes: (1) main input breaker Square “D” JG 250 200 amp(1) Square “D” JG 250 225 amp sub-feed breaker(2) Square “D” QB 225 amp distribution breakers feeding (2) GE 42 pole bolt-on GE panel boards NO BRANCH CURCUIT MONITORING
Height (Inches): 79.0
Input Amperage Max: 155.0
Input Frequency: 60 Hz
Input Voltage: 480
Input Wiring: 3 wire
Internal Battery Size: N/A
kVA: 125
Length/Depth (Inches): 40.0

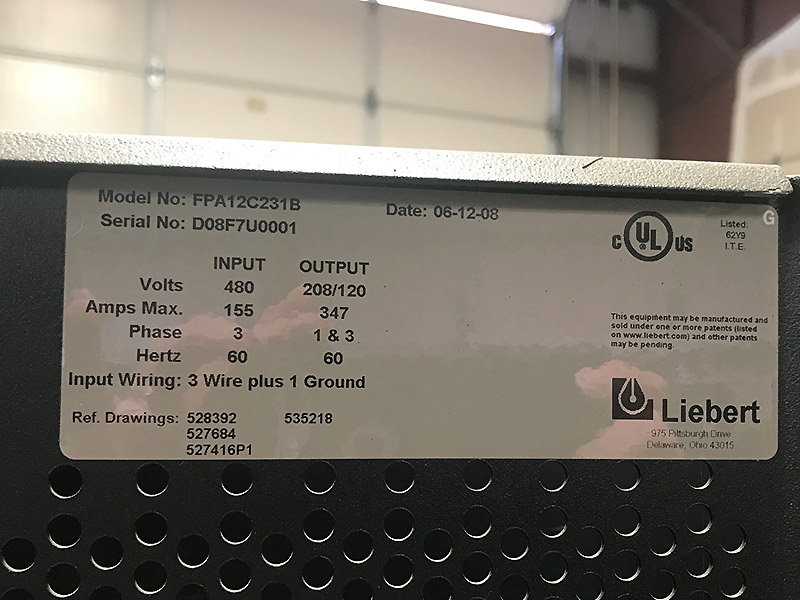

Model: FPA12C231B
Model Family: NX (FPC)
Output Amps Max: 347.0
Output Frequency: 60 Hz
Output Voltage: 208/120
Output Wiring: 4 wire
Phase: 3 PHZ
Serial Number: D08F7U0001
Shipping Info Misc: 48X 32X 84
SKU: 6447
UPS Input: Single
Weight (Lbs) : 1,610.0
Width (inches): 24.0
Year: 2008
