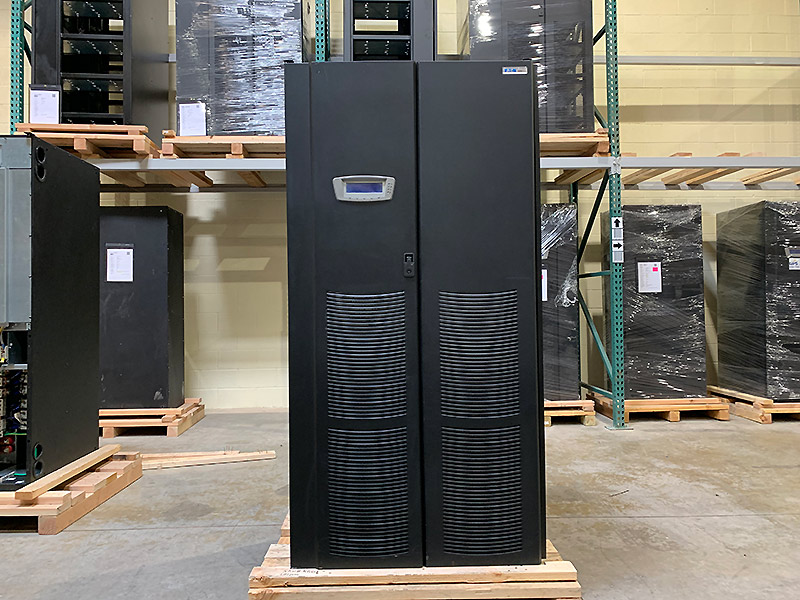

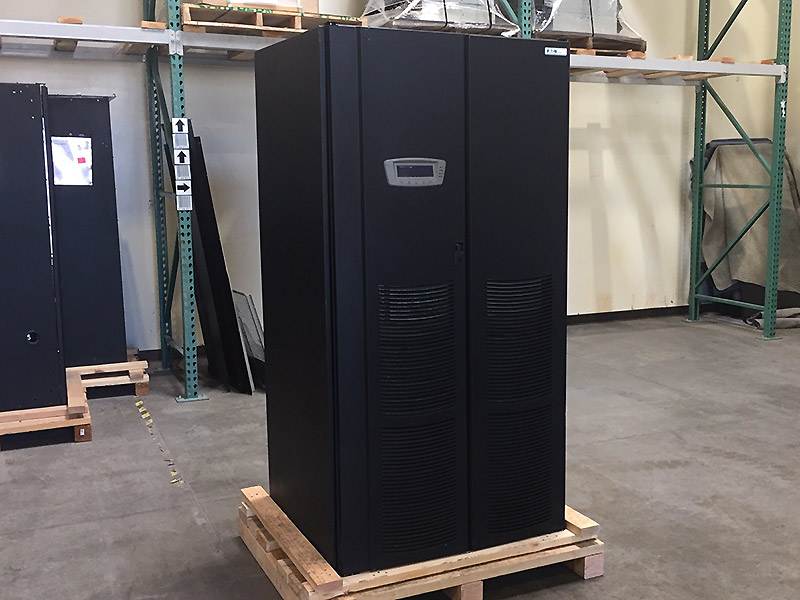

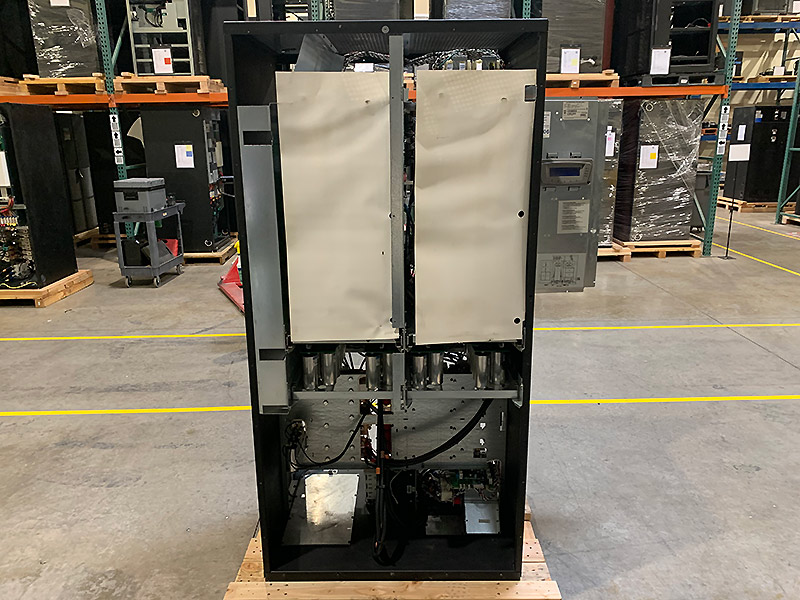

Name: Eaton Powerware 9390 160 kVA
Brand: Eaton Powerware
SKU: 5601
Availability: InStock

Product Details

Bypass Amps Max: 193.0
Bypass Voltage: 480
Bypass Wiring: 4 wire
Condition: Used

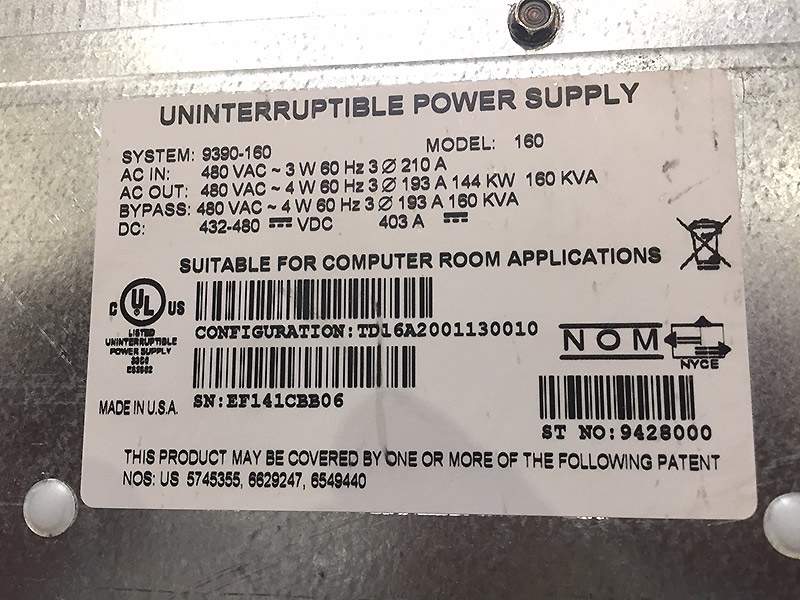

Configuration (CTO): TD16A2001130010
DC Amps: 403
DC Bus Voltage: 432-480
Height (Inches): 73.0
Hours: 0
Input Amperage Max: 210.0
Input Frequency: 60 Hz
Input Voltage: 480
Input Wiring: 3 wire
kVA: 160
kW: 144.0
Length/Depth (Inches): 32.0
Model: 9390-160
Model Family: 9390
Output Amps Max: 193.0
Output Frequency: 60 Hz
Output Voltage: 480
Output Wiring: 4 wire
Phase: 3 PHZ
Serial Number: EF141CBB06
Shipping Info Misc: 45x 40x 79
SKU: 5601
UPS Input: Single
Weight (Lbs) : 1,270.0
Width (inches): 36.0
Year: 2012

Powerware 9390 160 kVA UPS (RT) Certified Refurbished
Model: 9390-160/160
Voltage In: 480
Voltage Out: 480
Dimensions: 35.8" W x 31.6" D x 73.7" H
Weight: 960 Lbs

All units include the following features as standard equipment:
Double Conversion Topology
Unit efficiency up to 94%
Unit output rating @ 0.9 Power Factor
Input current distortion < 4.5%
Full kW support from 0.9 lagging to 0.9 leading
Supports Inductive loads to full kVA rating of system
Advanced Battery Management (ABM) technology
Scalable Architecture
Variable DC bus for optimizing runtimes
Castors with leveling feet
Line and match design
Multi language display
Two internal X-slot card bays
Patented HotSync parallel firmware control
Parallelable for Redundancy or Capacity
