Product Details
Battery System: Cabinet
Bypass Amps Max: 65.0
Bypass Voltage: 480
Bypass Wiring: 3 wire
Condition: Used
DC Amps: 98
DC Bus Voltage: 480
Ext. Notes: 80 kVA frame currently set to 40 kVA
External Batteries: Yes
Height (Inches): 79.0
Input Amperage Max: 68.0
Input Frequency: 60 Hz
Input Voltage: 480
Input Wiring: 3 wire
kVA: 40
kW: 36.0
Length/Depth (Inches): 39.0
Maintenance Bypass: Yes

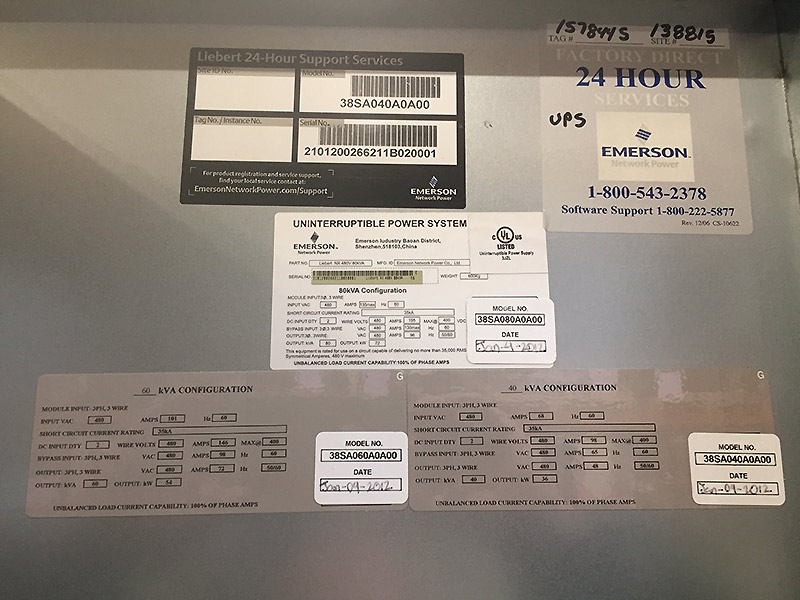

Model: 38SA040A0A00
Model Family: NX
Output Amps Max: 48.0
Output Frequency: 60 Hz
Output Voltage: 480
Output Wiring: 3 wire
Phase: 3 PHZ
Serial Number: 2101200266211B020001
Shipping Info Misc: 34x46x84
SKU: 7714
Weight (Lbs) : 1,060.0
Width (inches): 26.0
Year: 2012
