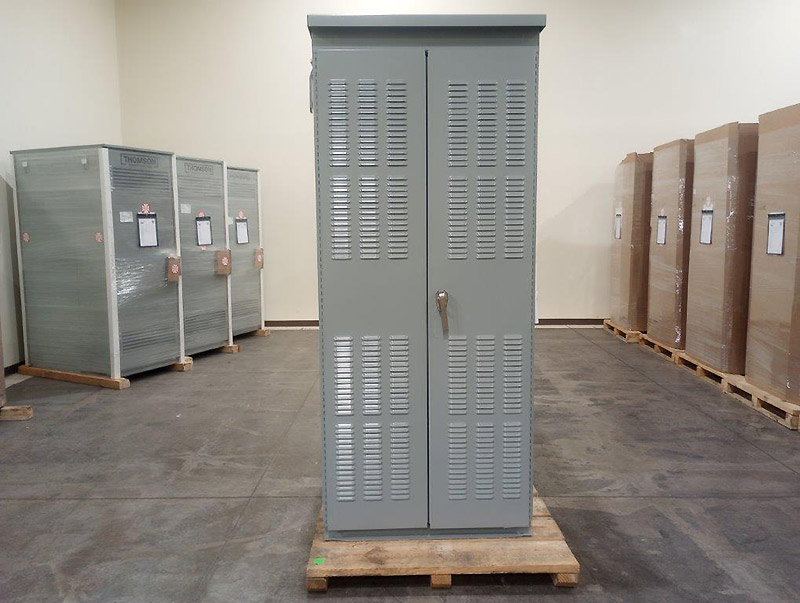

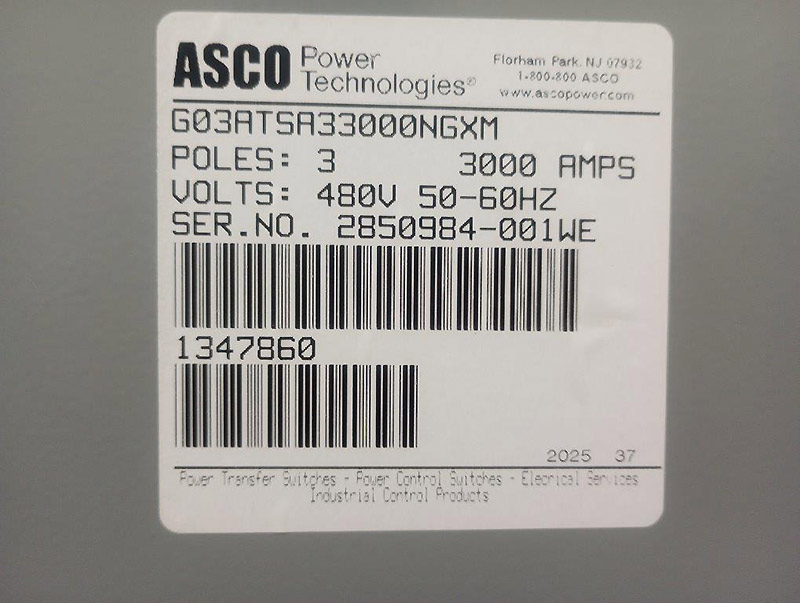

ASCO 3000A Series 300 (#10279)

ASCO SERIES 300 Automatic Transfer Switches

Power outages impact small and large facilities alike. ASCO SERIES 300 Automatic Transfer Switches offer rugged design and reliable performance to small and mid-size commercial and industrial facilities in packaged solutions that are easy to select, procure, install, and operate.

Every SERIES 300 generator transfer switch is engineered with ASCO's reliability expertise in a package that makes backup power accessible for small and mid-size facilities. Leveraging knowledge derived from a century of critical power transfer experience, each SERIES 300 is backed by the same ASCO technical support and service that solves the most demanding critical power challenges facing facilities today.

Designed to Fit Anywhere

The ASCO SERIES 300 product line provides the most compact design of generator power transfer switches in the industry.

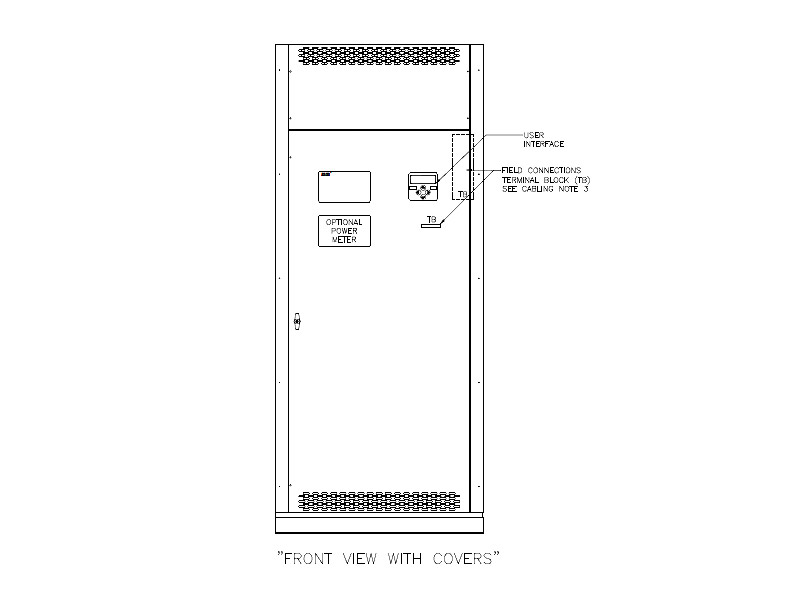

Available to mount on walls or floors, all models through 2000 amperes are designed to be completely front-accessible. This permits installation flush against walls while allowing installation of cabling and connections from the front of the switch. Cable entrance plates are standard on 1600 and 2000 amperes units; these allow use of optional side-mounted pull boxes for additional cable bending space.

• 30 through 3000 amperes in compact designs
• Up to 600 VAC, single or three phase
• Listed to UL 1008 - Standard for Safety - Transfer Switch Equipment

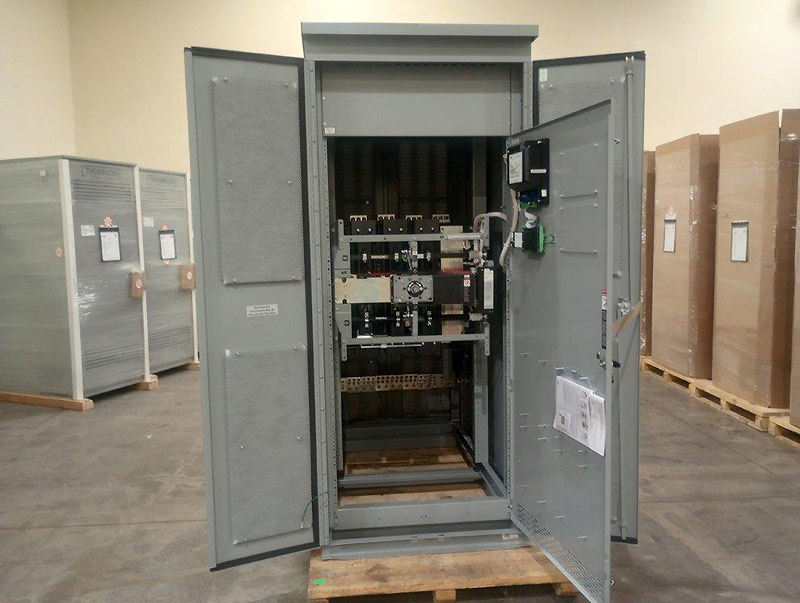

• True double-throw operation: The single solenoid design is inherently interlocked to prevent simultaneous connections of two power sources
• Will not transfer to a dead source - single solenoid operator derives power from the destination source

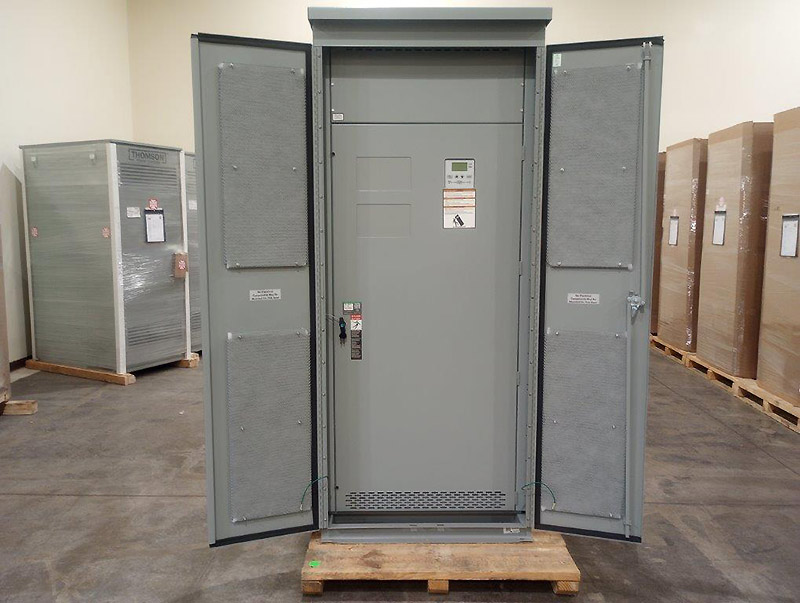

• Easy-to-navigate 128x64 graphical LCD display with keypad provides LED indicators for switch position, source availability, not-inauto mode, and alert conditions
• Integrated, multilingual, user interface for configuration and monitoring
• Soft keys for test function and time delay bypass
• Emergency source failure alert indication
• Displays statistical ATS monitoring information
• Built-in diagnostic functions
• Password protection to prevent unauthorized actions
• Adjustable delay feature prevents nuisance transfer due to momentary utility power outages and generator dips
• Auxiliary contacts signal position of main contacts - two for normal and two for emergency position
• Standard solid neutral terminals
• Restriction of Hazardous Substances (RoHS) compliant controller
