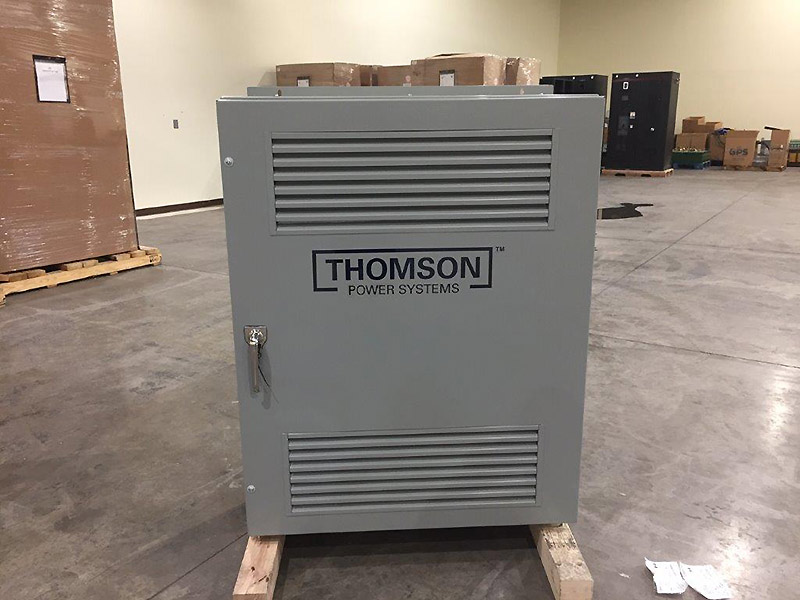

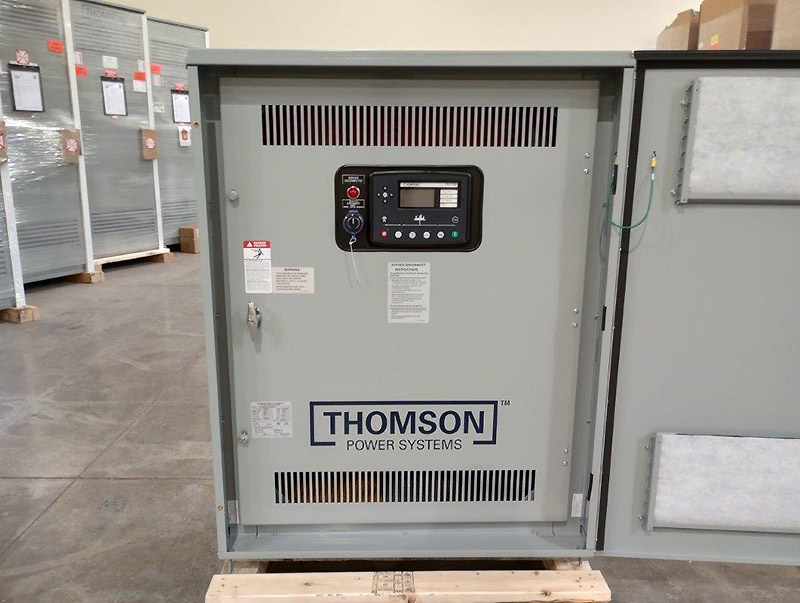

Thomson 800A TS 870 (#10707)

THOMSON POWER SYSTEMS TS 870 AUTOMATIC TRANSFER SWITCHES

Thomson Power Systems TS 870 Automatic Transfer Switches employ two mechanically interlocked power switching units with a microprocessor based controller to automatically start a generator and transfer system load to a generator supply in the event of a utility supply failure. System load is then automatically re-transferred back to the utility supply following restoration of the utility power source to within normal operating limits. All load transfer sequences are “Open Transition” (i.e.“break-before make”) with adjustable neutral position delay to ensure adequate voltage decay for preventing out of phase transfers.

TS 870 Automatic Transfer Switches are certified to UL 1008 & CSA 178 Standards for use in Emergency Power System applications.

All TS 870 Transfer Switch models have been 3 cycle withstand current tested in accordance with UL 1008 & CSA 178. Additionally, they can withstand 6 times overload for 10 cycles. The standard TS 870 Automatic Transfer Switch is rated for 100% system load. The TS 870 design allows optional use of integral over current trip elements within the power switching units. All TS 870 Automatic Transfer Switches use a TSC 7320 microprocessor based controller which provides all necessary control functions for fully automatic operation. The controller is equipped with 2.3” back-lit LCD display which provides operating status and controls. All parameters and configurations are entered without opening the front door.

ENCLOSED CONTACT POWER SWITCHING UNITS

• Fully enclosed silver alloy contacts provide high withstand rating & 100% continuous current rating
• 3 Cycle short circuit current withstand
• Power switching units can incorporate over current protection, allowing cost savings in upstream devices
• Not damaged if manually switched while in service

SUPERIOR SERVICEABILITY

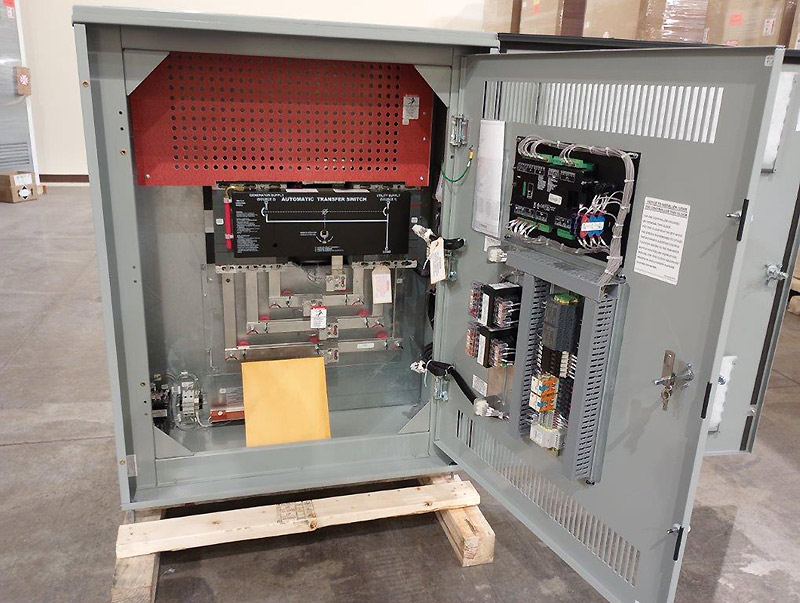

• All mechanical and control devices are visible and readily accessible
• All control wires and power busses are front accessible
• Plug-in TSC 7320 Transfer Switch Controller

CONTROL FEATURES

• TSC 7320 microprocessor based controller with 2.3” back-lit LCD display and programmable inputs/outputs
• Isolation plug permits disconnecting control circuits from all power sources

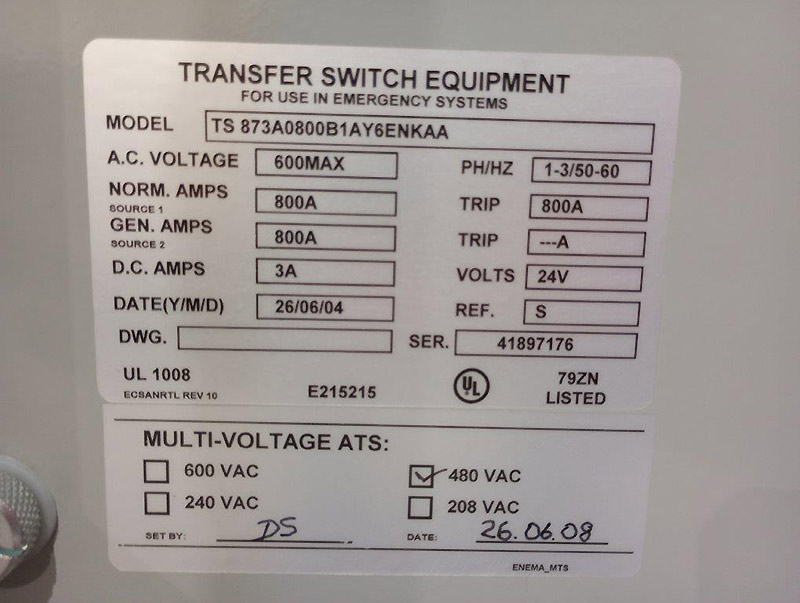

PRODUCT DATA

• Models available from 100 - 1200A continuous current
• Available 2, 3 or 4 Pole
• All models 50/60Hz rated
• Voltage range 120 - 600V
• 3 Phase, 3 or 4 wire systems
• Open Transition or Closed Transition ATS
• 1000/1200A offer fast Open Transition transfer, with in-phase monitoring

QUALITY ASSURANCE

• ISO 9001 Registered

SEISMIC CERTIFICATION

TS 870 is certified for installation and operation per the following requirements:

• IBC 2012 – Section 13, Occupancy Category IV
• ASCE7 - 05 Region 3 (minimum SS=200%)

SAFETY STANDARDS

• UL 1008
• CSA C22.2 No. 178 Automatic Transfer Switches
• NFPA 110 Standard for Emergency and Standby Power Systems

WARRANTY

• 2 year limited warranty included
