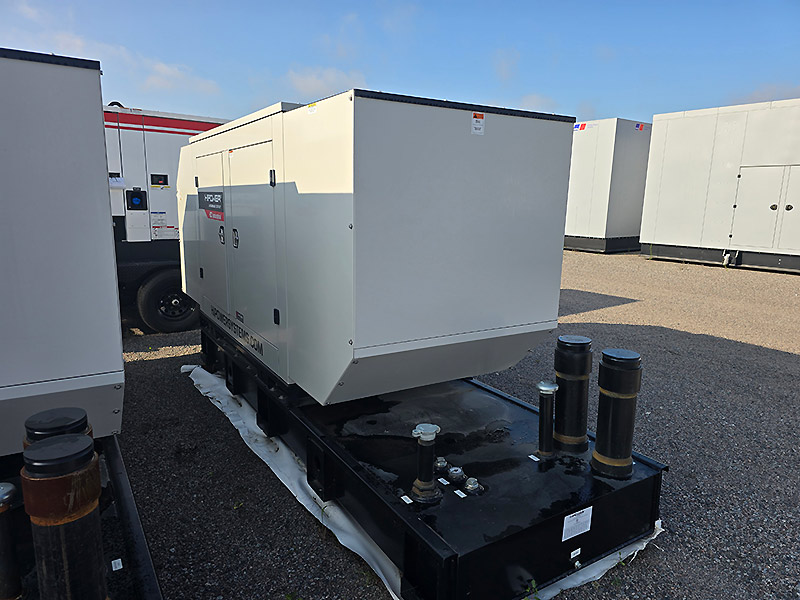

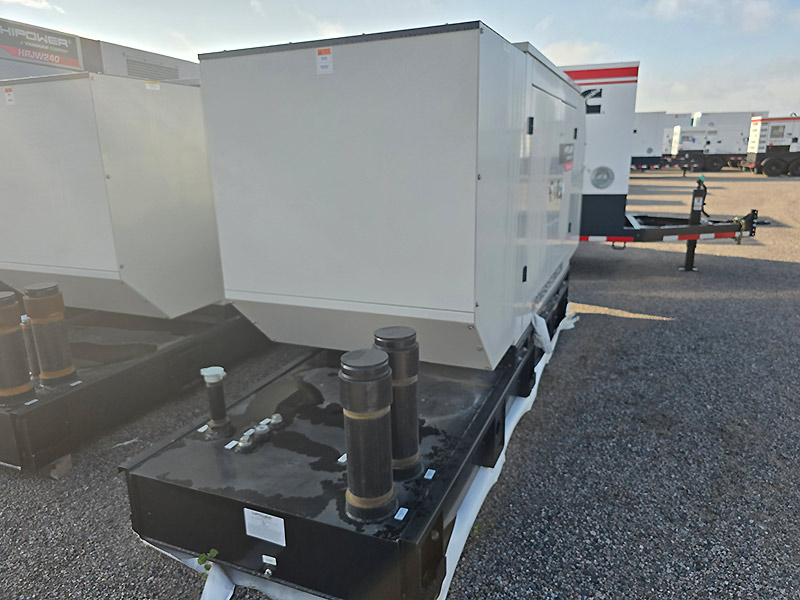

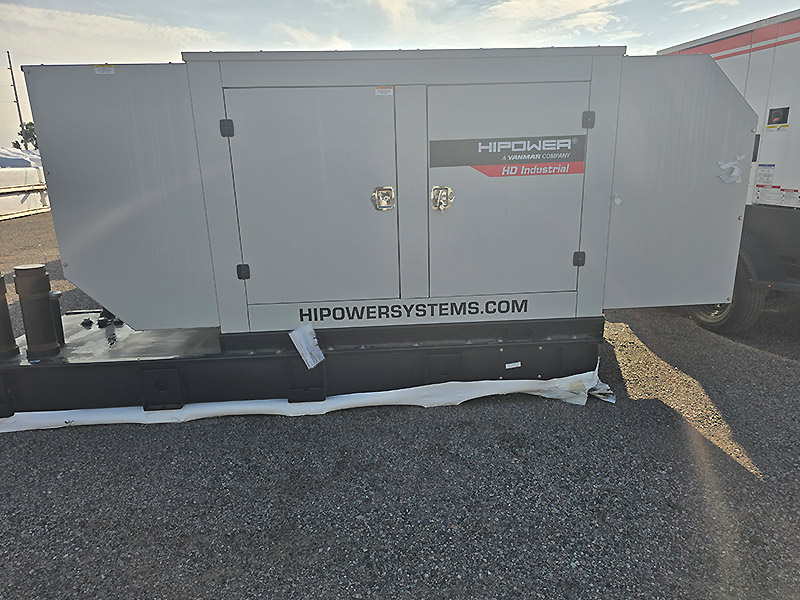

Hipower 80 kW HDI 80 (#9172)

HIPOWER Heavy Duty Industrial generators are an effi cient, reliable and versatile source of back-up electrical power that have been designed to operate in the most extreme working conditions. All HIPOWER® Heavy Duty Industrial generators combine an innovative design and the use of high quality materials that provide the user with the most dependable power that can be relied on for non-stop power with easy to operate controls. Powered by a radiator-cooled, industrial FPT Diesel engine that meets current Environmental Protection Agency (EPA) TIER 3 exhaust emission regulations, driving a single bearing, four-pole, three-phase alternator, with IP23 protection. The Emergency Power kVA rating is given with a 125 degree o C alternator winding temperature rise.

HIPOWER Features and Benefits

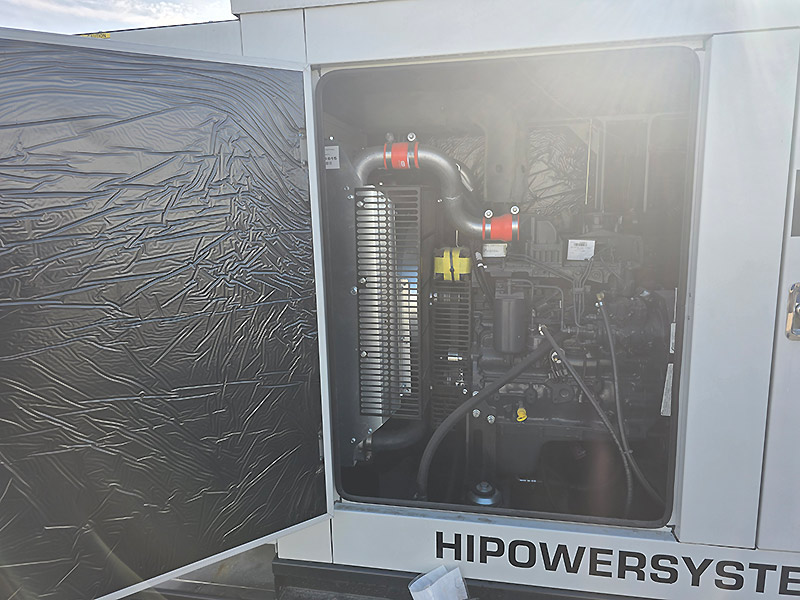

FTP Diesel Engine: Long-life, heavy-duty, 4-cycle, direct injection engine for economy of operation and maximum reliability and durability.

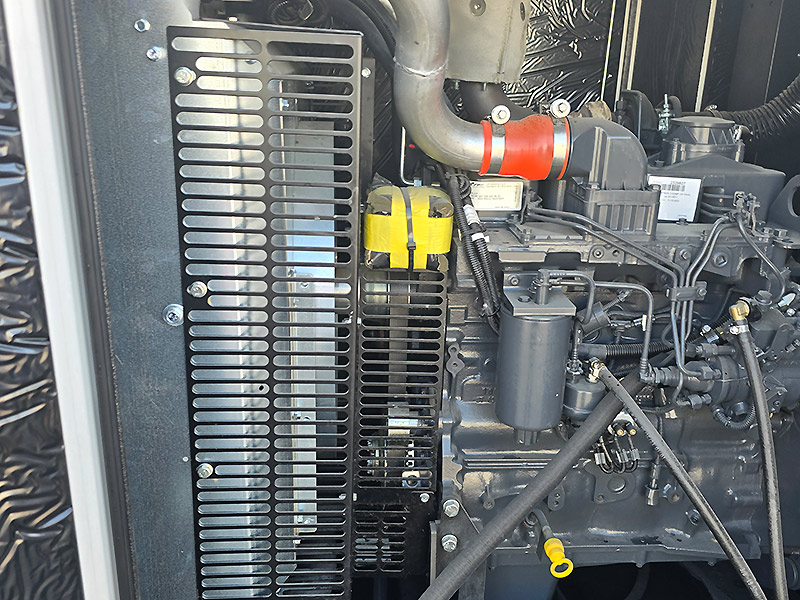

Cooling: Radiator with belt driven pusher fan.
Air Filter: Heavy-duty replaceable element air-cleaner.
Alternator: Single bearing, rotating fi eld, self-excited, self-ventilated, 12-wire reconnectable, 60Hz brushless alternator and Class H insulation. Automatic voltage regulator (AVR) providing close voltage regulation and skVA starting capability for electric motor loads.

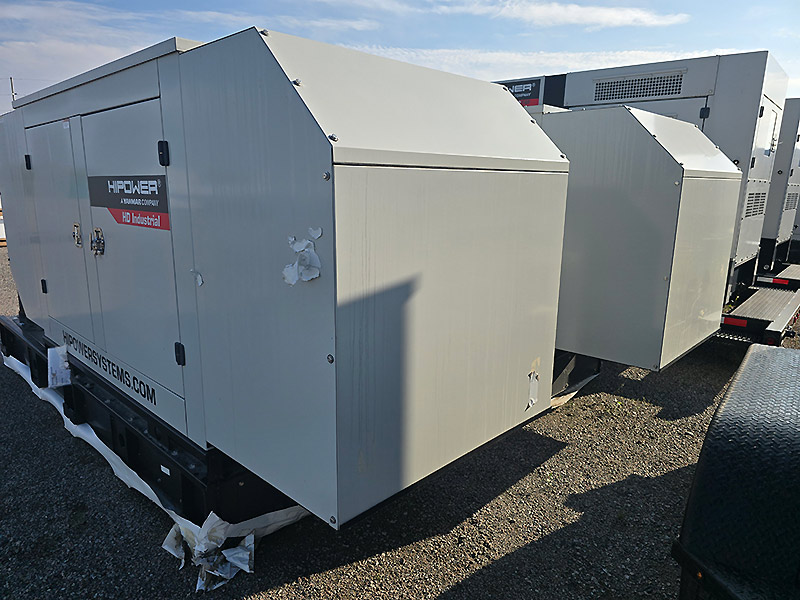

Enclosure: Fully sound attenuated enclosure, manufactured using 7-gauge steel and thicker for the base; 12-gauge and 14-gauge for the enclosure, Interpon A4700 primer, in combination with Interpon 600 series coatings, are designed for exterior exposure and offers excellent light and weather resistance exceeding 1400- hr salt spray test. A 1” thick layer of durable sound insulating, oil and fi re resistant foam material is installed all around the inside of the enclosure to allow high-pressure water cleaning. Vertical air discharge for quiet operation. Wide steel lockable access doors with rubber seals, easy access for maintenance and service activities, lift off Die Cast Zinc hinges textured black powder coat and corrosion resistant hardware and fasteners.
Exhaust: Low noise, steel residential-type exhaust silencer with rain cap. Fuel Filtration: Standard and secondary water separator with visible level on fuel filters.
Controls: Digital control panel with manual and automatic start and stop features. Many programmable automatic functions for local and remote controls with LED lights and tamper proof engine hour recorder.
Certification: Generator set is UL 2200 Listed and CSA certifi ed and meets ISO 8528-5. IBC seismic certified to the maximum force level requirements according to ICC-ES AC-156.
