Kohler 800 kW KD800 (#10953)

Name: Kohler 800 kW KD800
Brand: Kohler Industrial Generators
SKU: 10953
Availability: InStock

Add to quote

SKU: 10953 Category: Diesel Generators Brand: Kohler Industrial GeneratorsCondition:UsedkW:800kW Rating:StandbyAmps:1203Voltage:277/480Hours:33

Product Details

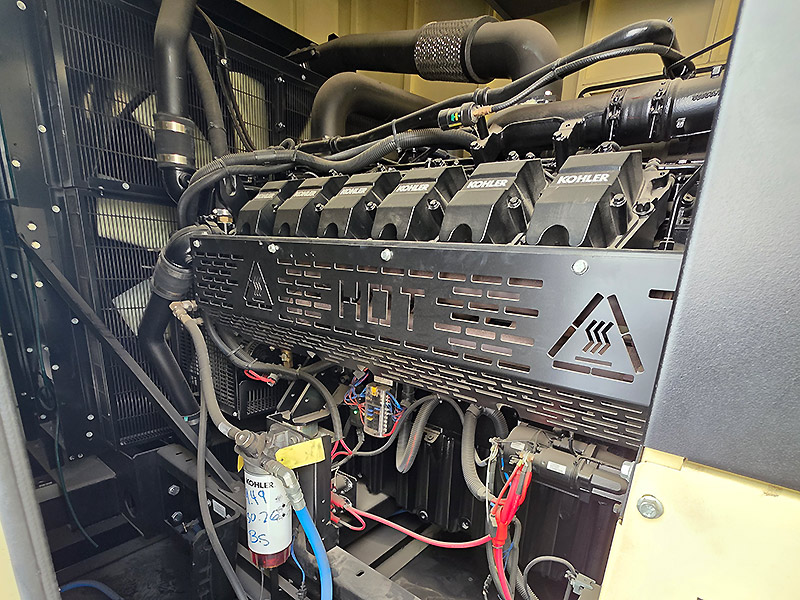

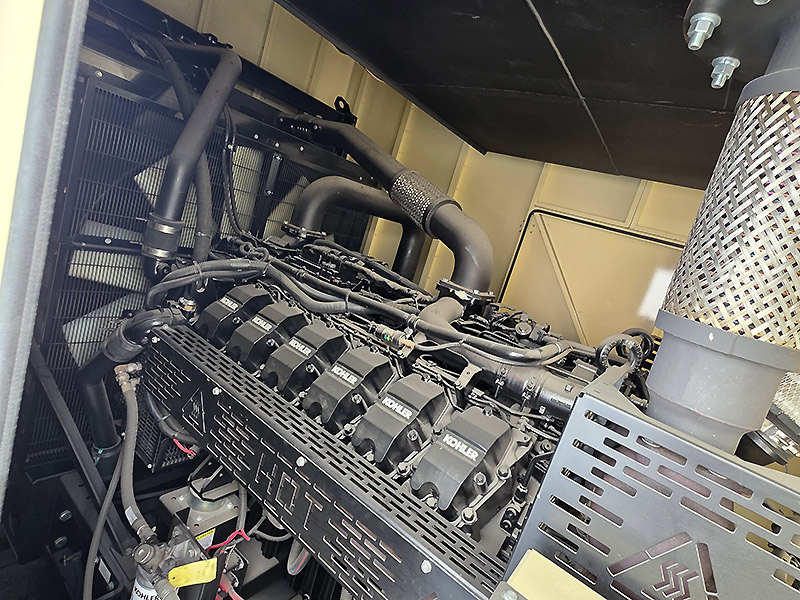

Engine Details
Engine Manufacturer	Kohler
Engine Model	KD27VIZ-6AES
Engine SN	2021160801
Emission Tier	2
RPM	1800
Generator Set Details
SKU	10953
Manufacturer	Kohler
Condition	Used
Hours	33
Year	2022
Model	KD800
Genset Serial Number	3333GMJR0009
Power Factor	0.8
Fuel Type	Diesel
kW	800
kW Rating	Standby
Voltage	277/480

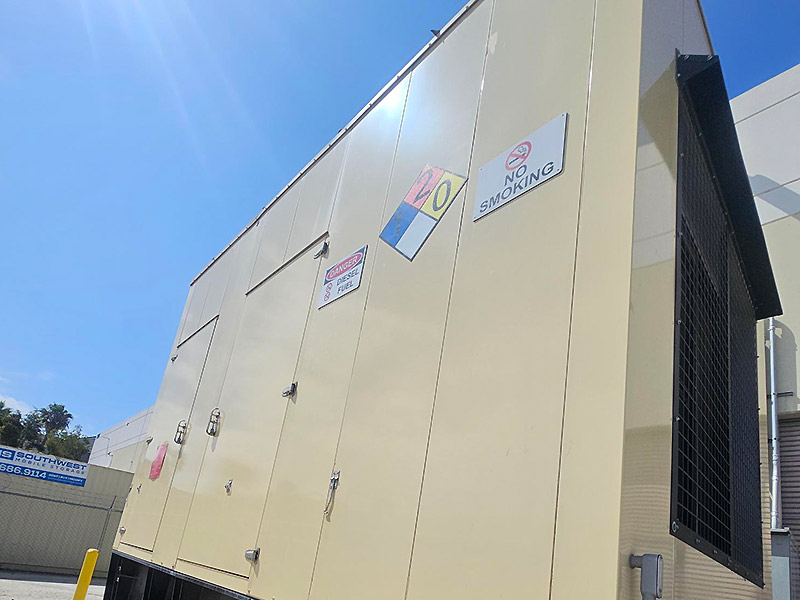

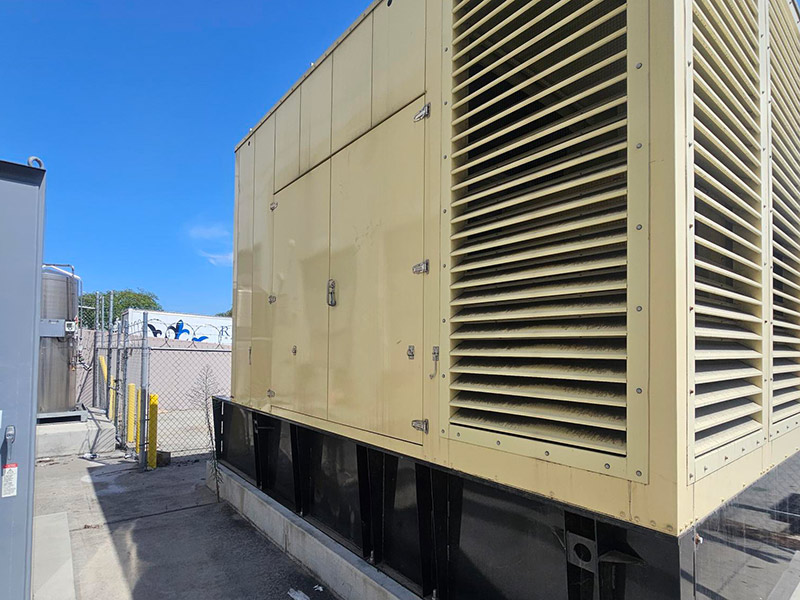

Enclosed	Sound Attenuated
Fuel Tank	1400 Gallon Tank
Amps	1203
Phase	3
Frequency	60 Hz

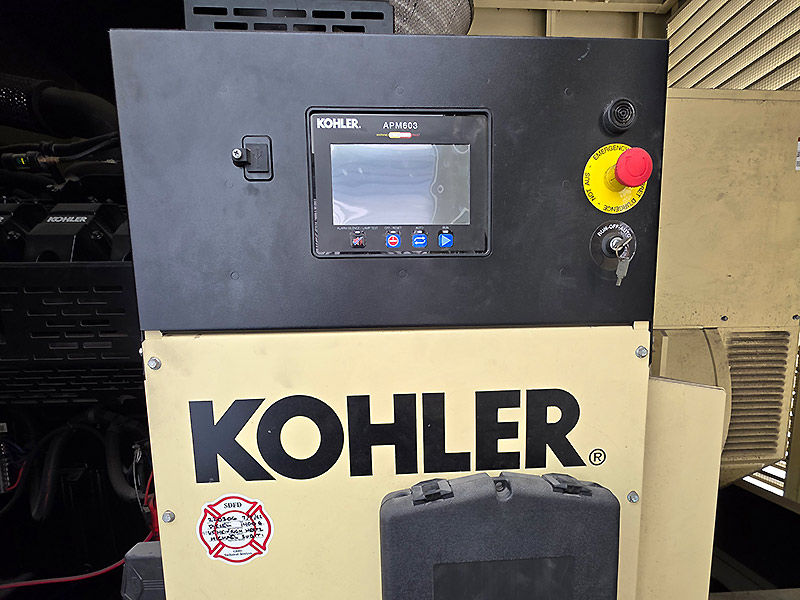

Control Panel	Digital
Control Panel Mfg	Kohler
Control Panel Model	APM603
Length/Depth (Inches)	210
Width (Inches)	98
Height (Inches)	154
Weight (Lbs)	30000
ID#	33042
Generator End Details
Alternator Make	Kohler
Alternator Model	KH02970TO4D
Alternator SN	V04L884
Reconnectable	Yes
Bearings	Single
Insultation Class	H
Notes
Kohler has changed the name of its energy division to Rehlko. Kohler logos will still appear on some products while the transition is completed. Operations, manufacturing locations, and service networks remain the same.

Kohler KD800 800 kW Diesel Generator

The Kohler KD800 800 kW diesel generator is designed for commercial and industrial standby power applications requiring reliable, high-capacity backup power. This 2022 generator set is rated for 800 kW (1000 kVA) standby power at 60 Hz and 1800 RPM and is configured for 277/480 V, 3-phase power. The unit is powered by a Kohler KD27VIZ-6AES diesel engine and is identified as EPA Tier 2 on the equipment listing. Kohler's published KD800 specifications also identify an 800 kW standby rating and 720 kW prime rating for the model.

With only 33 operating hours, this used KD800 is configured with a sound-attenuated enclosure and 1400-gallon sub-base fuel tank, providing an integrated package for outdoor standby power installations. The generator also includes a Kohler APM603 digital control panel and a reconnectable Kohler alternator. For facilities evaluating backup power for critical operations, this configuration combines an 800 kW standby generator, enclosure, and large-capacity fuel storage in a single available system.
