MTU 3000 kW DS3000 (#10885)

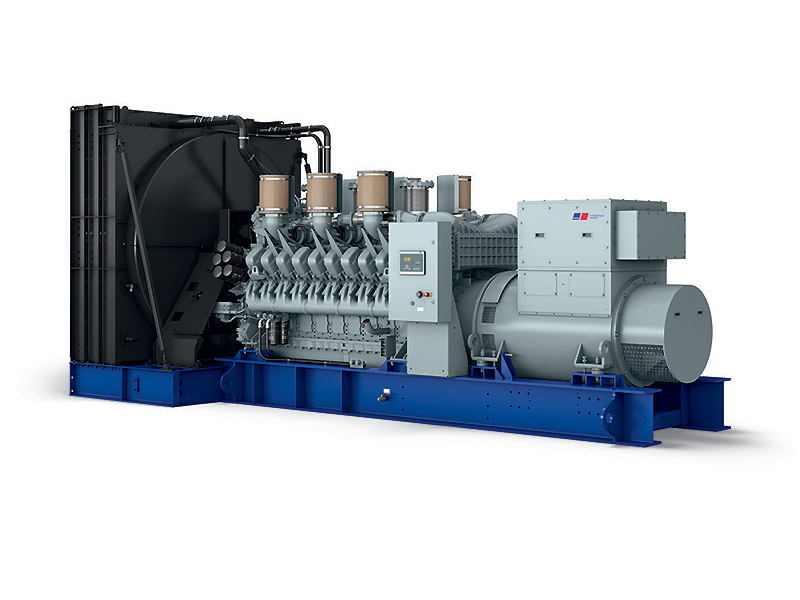

MTU 20V4000 DS3000 3,000 kW Diesel Generator

The MTU 20V4000 DS3000 is a 3,000 kW standby diesel generator engineered for large-scale critical power applications requiring dependable backup power and fast load acceptance. Powered by the MTU 20V4000G94S diesel engine, these generator sets are pre-configured for medium-voltage operation from 12,470V through 13,800V, making them well suited for utility, industrial, data center, healthcare, and other mission-critical facilities requiring medium-voltage backup power.

Designed for mission-critical environments, the generator is capable of accepting its rated load in a single step in accordance with NFPA 110 requirements and is tested to ISO 8528-5 for transient performance. The brushless alternator provides ±0.25% voltage regulation from no load to full load while delivering up to 300% sustained short-circuit current for up to 10 seconds, supporting large motor starting and demanding electrical loads.

• 3,000 kW standby rating
• MTU 20V4000G94S 20-cylinder diesel engine
• 60 Hz, 1,800 RPM operation
• Pre-configured medium-voltage output: 12,470V to 13,800V
• Brushless alternator with Permanent Magnet Generator (PMG)
• Digital control panel with engine and generator protection
• Common rail fuel injection system
• Integral radiator cooling package
• Electronic isochronous governor
• NFPA 110 compliant load acceptance
• ISO 8528-5 tested transient performance
• EPA Tier 2 certified engine
