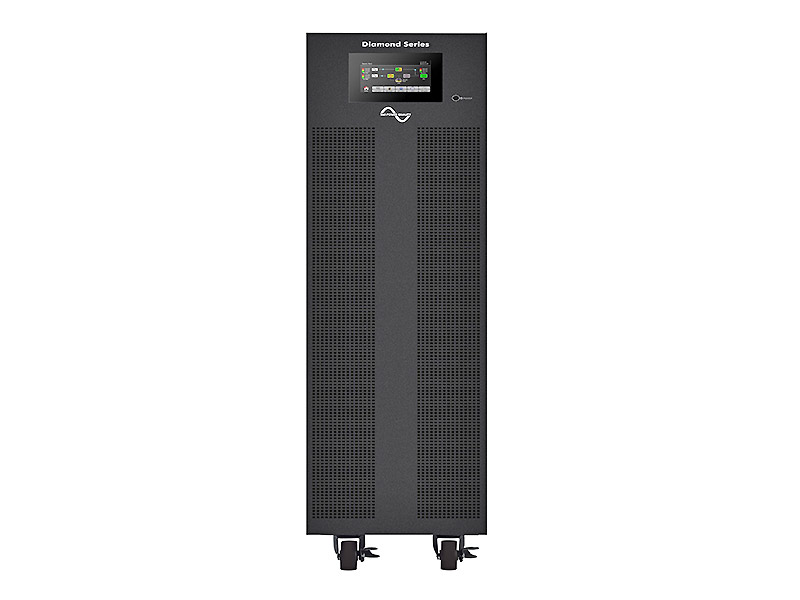

360 Power Quality Diamond Series 10 kVA (#9082)

360 Power Quality's True On-line Double Conversion Diamond Plus UPS Series has been designed to backup various applications. Small datacenters, Medical Lab equipment, light industrial facilities all require rugged UPS equipment.

Available sizes
10, 15, 20, 30 and 40kVA models available.

Small Footprint
The 10/15/20kVA Diamond Series UPS units have one of the smallest footprints in the industry. Just 9.8 inches wide (10kVA), and 12 inches wide (15/20kVA) allows for the Diamond Series UPS units to fit into small locations where space is a premium. Additionally the 30/40kVA is only 23.4 inches wide which also allows for these units to fit into small locations.

Power Factor 1:1
For critical applications, this 3-phase online UPS has an output power factor of 1.0. This ensures higher kW output with its advanced IGBT performance.

Conformal Coated Boards
Conformal coated boards protects the Diamond Series units to be used in Light Industrial applications. Boards that are conformal coated include the Main PCB, Bypass, Charger, Parallel and Joint boards.

Parallel operation with common battery
The system can be operated in up to 6 units in parallel, increasing the capacity and performance. Besides, this parallel UPS system can share common battery packs which might greatly reduce the expense and reach the same performance.

Very powerful charger
Diamond series is built-in powerful charger to support long runtime applications when connecting to big capacity of external battery cabinet.

Adjustable battery design
The number of connected batteries can be adjusted flexibly based on different power demands. This feature can allow UPS to keep running even when some battery packs are damaged.

Power walk-in function
The Diamond Series is designed to have flexible power walk-in by way of adjusting the power walk-in time. This setting will optimize generator sizing and reduce the impact to the AC source by having different walk-in time for different paralleled UPS system when AC grid is recovered.
