360 Power Quality Titanium Series 10 kVA (#9091)

360 Power Quality's True On-line Double Conversion Titanium Series UPS Series integrates DSP technology and a unique isolation transformer design to easily adapt to complicated loads. Small datacenters, Medical Lab equipment, light industrial facilities all require rugged UPS systems like the Titanium Series.

Available sizes
5.2kVA, 6kVA, 8kVA and 10kVA models available

Variable Voltages (Input/Output)
Variable voltages are available for the input (208/220/230/240VAC) and for the output (120/208/220/230/240VAC)

High Voltage Units
The Titanium Series UPS systems will have high voltage units (5.2/6/8/10kVA)

Isolated Transformer
All Titanium UPS units include an internal isolation transformer. This rugged design ensured low Common Mode noise (>0.5V), and low Normal Mode noise (>10V) neutral to ground when tested to ANSI/IEEE C62.41

Conformal Coated Boards
Conformal coated boards allow for the Titanium Series to be used in Light Industrial applications. Boards that are conformal coated include the Main PCB, Comm., Charger and Control board.

In rush Capabilities
The Titanium Series UPS systems include a high in rush capability. Supporting an overload for 130% for one second. This will allow the user to properly size their UPS system.

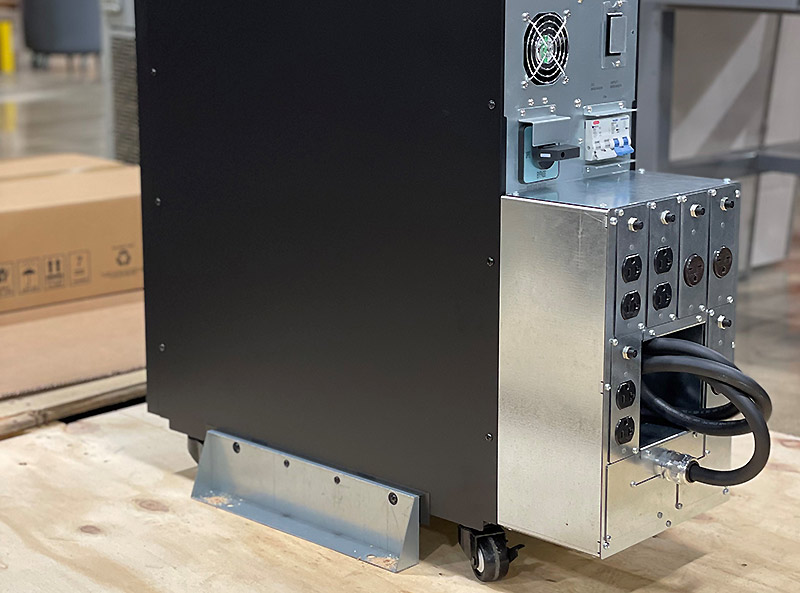

Customized Back Panels
Back panels are customized per customer. Allows for specific designs to ensure all power requirements are supported.

Extended Battery Cabinets
Extended battery cabinets are optional. Allows user to have extended runtimes dependent on requirement.

External Maintenance Bypass Systems
External Maintenance Bypass Systems (MBS) are available in two types. Isolated and non isolated version. Consult Factory for recommendations.
