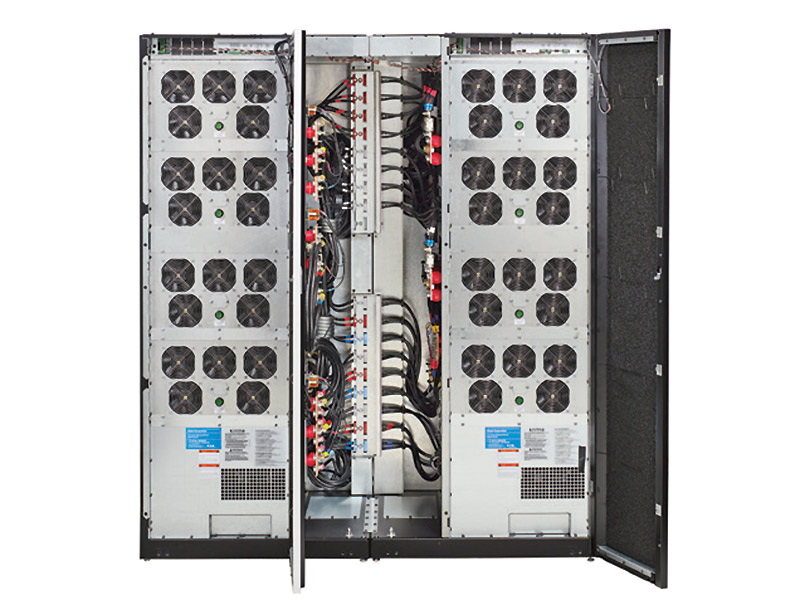

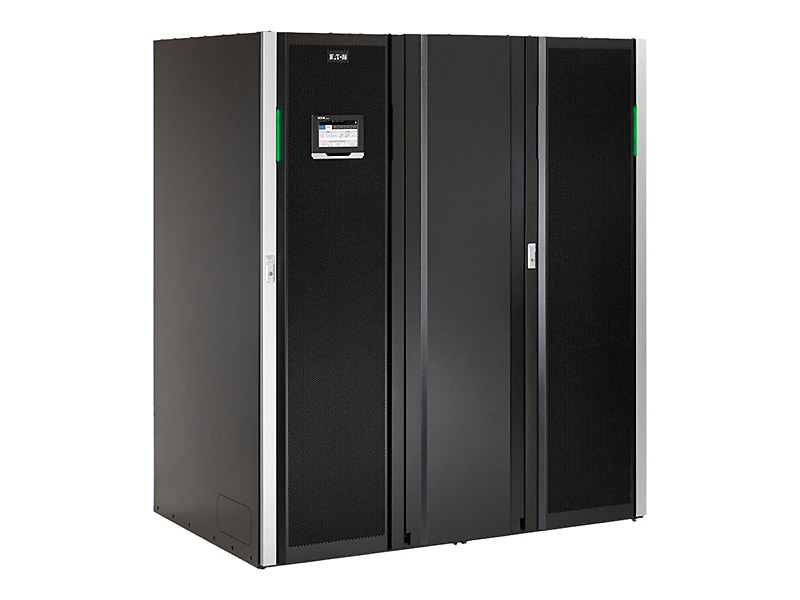

Eaton 93PM 350 kVA (#9915)

Eaton 93PM 60 kW UPS - Efficient. Scalable. Innovative.

The Eaton® 93PM UPS combines high efficiency and reliability with an eye-catching design. A space-saving, scalable and flexible device that’s as easy to deploy as it is to manage; it’s the perfect three-phase white or grey space solution for today’s data center.

Lowest TCO (total cost of ownership)

• Conserve valuable data center floor space with the compact footprint and optional maintenance bypass
• Grow effortlessly with vertical scalability, reducing cost and unexpected future growth risks
• Reduce power and cooling OPEX through industry-leading energy efficiency
  -Up to 98.5 percent efficiency with Energy Saver System (ESS)
  -Up to 95 percent efficiency in double-conversion mode

Easy deployment

• Provides flexible configurability
• Includes swappable technology to scale in minutes and minimize downtime

Eaton 93PM efficiency in doubleconversion and ESS

Easy management

• Track statistics on energy savings, battery time and outages
• Profile your load and much more with the friendly graphical LCD touchscreen interface
• View system status from a distance with the green/yellow/ red LED light bars

Advanced IT integration

• Supports optional communication cards that allow remote access via the HTTP(S), SNMP, MODBUS TCP/IP, Modbus RTU and BACnet IP protcols
• Manage your power devices in your physical or virtual environment with Eaton’s Power Xpert® software and Intelligent Power™ Software Suite
• Increase uptime through 24x7 remote monitoring and reporting capabilities using Eaton’s PredictPulse™ service that alerts technicians during critical events and results in faster resolutions when a problem is detected.

MPINarada MPL High Power Series Lithium Iron Phosphate (LFP) Battery System

The MPINarada MPL High Power Series Lithium Iron Phosphate (LFP) battery systems are designed for high-rate discharges and cover a wide range of UPS solutions. MPLhP systems can operate in temperature ranges up to 35C, while delivering exceptional warranty, safety, and life.

Features:

• System & String Level Protection
• 15-Year Design Life Solution Delivering Up to 188kW
• Lithium Iron Phosphate (LFP) Chemistry Safety
• Standard System HMI Display / Control
• Discharge Down to 3 minutes
• Flexible 51.2V Module Design
• Breaker Standard with BMS Controlled Contactors
• Dry Contact Alarming for UPS Charge and Discharge Control
• VRLA Battery Replacement Ready
• DC Self Powered BMS, No AC Power Drop Required
• Prepopulated System, No On-site Module Assembly
