Riello UPS MultiPower2 Power Cabinet 68 kVA (#10198)

RIELLO UPS MULTIPOWER2 - 208V UPS SYSTEMS

Riello UPS's MultiPower2 modular range represents a new generation of modular solutions specifically designed for the U.S. market and dedicated to critical computing environments and any other essential power application.

Riello Multi Power2- 208V (M2U) aims to offer higher power density, simpler integration to both existing and new installations and last but not least enhanced operating efficiency to reduce both the upfront investment and the day-to-day operational costs.

Thanks to its modular architecture, the system can be adapted to the load demands to avoid any oversizing and provide the best performance in every working condition.

EFFICIENT AND SUSTAINABLE

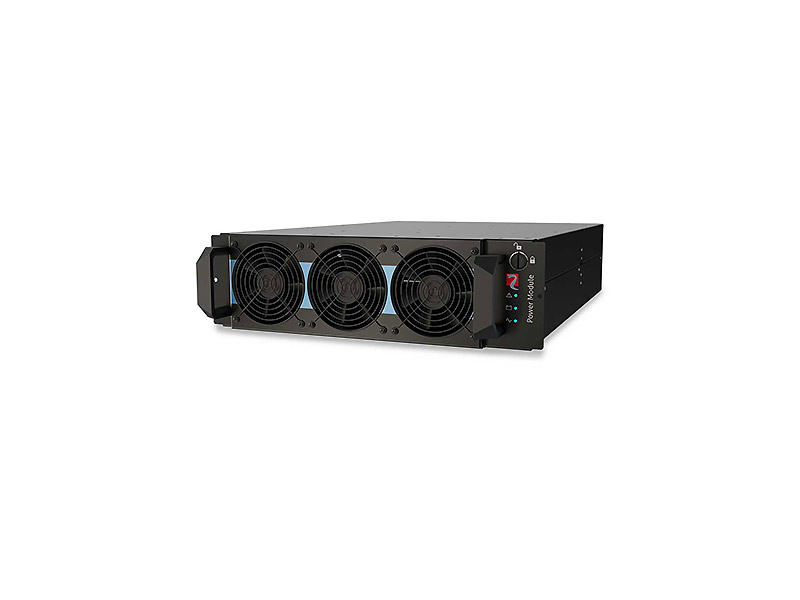

M2U works with the best-in-class power modules based on the latest silicon carbide technology (SiC), which reduces cooling requirements and allows for more compact, more reliable and more robust solutions. Our modules reach an efficiency up to 97% in ON LINE double conversion, providing the best power supply to critical equipment whilst minimising operating costs and energy losses. Moreover M2U units are able to work at PF 1 in temperatures up to 40 °C (without any power derating), minimising the demand and consumption of cooling systems.

FLEXIBLE AND SCALABLE

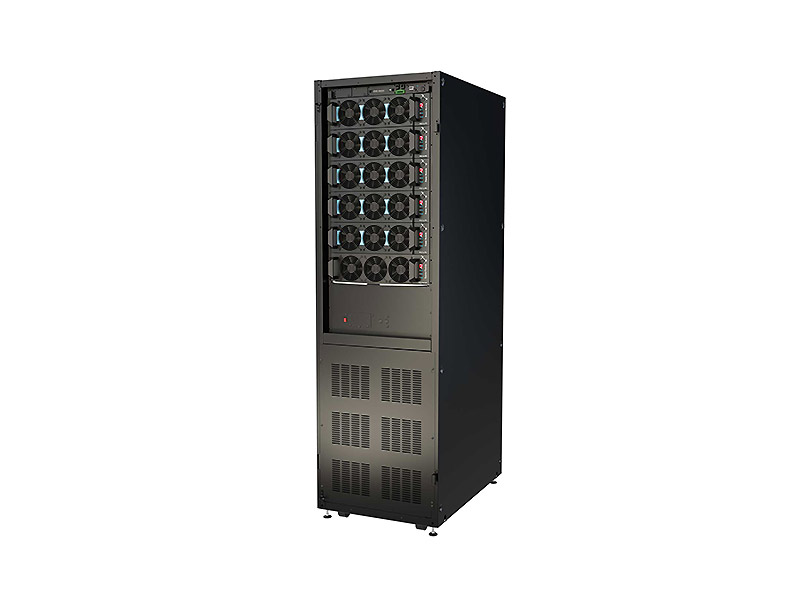

The Multi Power2 - 208V has been conceived to be fully customisable to meet the specific needs of each installation and quickly adapt to the load increase. Thanks to the hot-swappable features, the increase of power can be done while the unit is working in ON LINE double conversion without any disruption to the load. All the major components of the UPS are modular and can be easily added and/or replaced by the engineer, minimising the site intervention costs.

SMART MODULAR ARCHITECTURE (SMA)

• M2U is the result of a new design approach focused on a deep interconnection between hardware and software.
• Intelligence is distributed to ensure the protection of the equipment even on the off chance of a failure.
• Internal communication structure is based on two separate and fully redundant high speed buses.
• Automatic health-checks are performed during the plug-in of each module to verify its status and avoid defective components. Operation is completely risk-free and enables the user to increase the power or redundancy of the system while the UPS is protecting the load. If a module has a different firmware version, the system aligns it to one of the other modules.
• Continuous monitoring via several sensors embedded in each module: to check the status of the UPS and analyse the running and environmental parameters to ensure the best operating performances.
• Embedded interleaving technology grants a significant reduction of the ripple current values and extends the lifespan of the batteries and DC capacitors.

RELIABLE AND RESILIENT

To provide the highest level of quality and process control, each component of the system, from the modules to the cabinet, is designed and manufactured in Italy; moreover, all suppliers are carefully selected through a strict process of approval. At the end of our production line, all modules and full units undergo specific tests to grant rated performances and product integrity.

All collected measurements and data are analysed to keep improving our products and provide our customers with the most updated technologies.

To enhance the lifespan of the UPS, each module incorporates status counters, as well as temperature and humidity sensors, providing real-time analytics for operators.

USER FRIENDLY

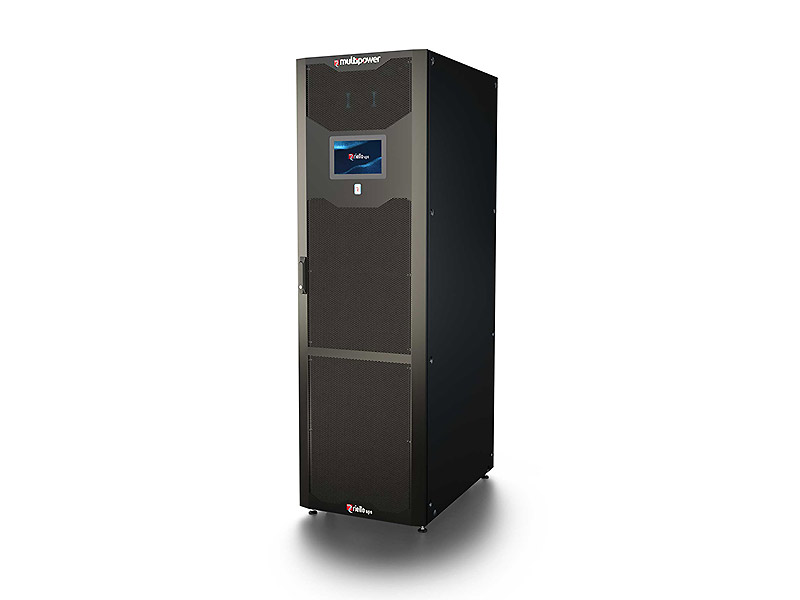

The Multi Power2 - 208V is equipped with a 10” colour touch screen display that simultaneously provides information, measurements and operating states of the entire system and of each individual power module.

The user interface also includes a LED bar which delivers immediate and clear information regarding the current status of the UPS. To ensure a simple, quick and full connection to the existing infrastructure, by default all Multi Power2 - 208V units are equipped with:

• network card NetMan 208
• embedded configurable In/Out signals (5 inputs and 4 outputs)
• 2 free slots for the installation of optional communication accessories such as network adaptors and extra volt free contacts
• R.E.P.O. Remote Emergency Power Off

ULTRA SERVICEABILITY

The unit was carefully engineered to simplify positioning, installation and maintenance operations.

Connection terminals are easily accessible for a safe and simple installation of the UPS. Thanks to the embedded intelligence, powerful computing capacity and outstanding connectivity, we can monitor remotely the status of the UPS and provide dynamic and dedicated services to increase its lifespan.
