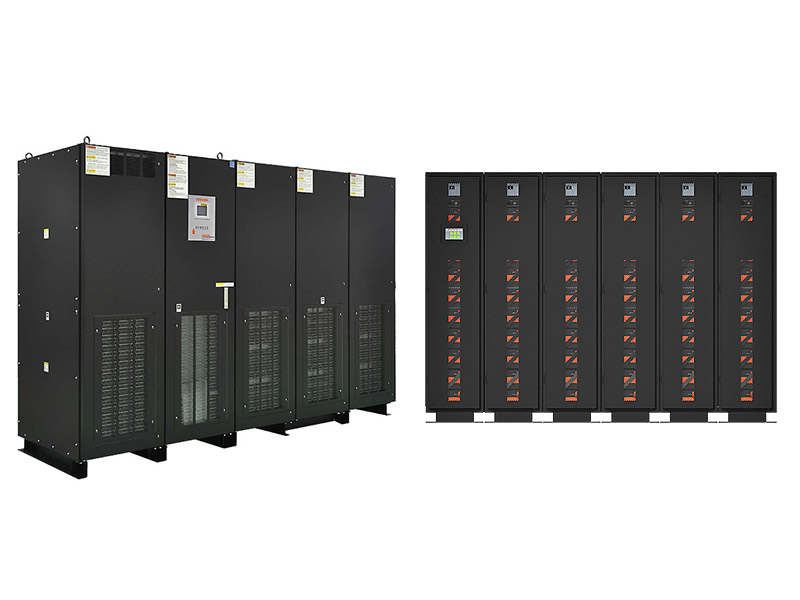

Toshiba G9000 Series 1000 kVA with Lithium Batteries (#10232)

Toshiba G9000 Series UPS Systems - Power and Efficiency Redefine UPS Performance Standards

The Toshiba G9000 Series Uninterruptible Power System (UPS) utilizes state-of-the-art design and construction to deliver industry-leading efficiency, reliability, performance, and flexibility to meet today’s critical power demands.

• Next-Generation Insulated Gate Bipolar Transistor (IGBT) Technology
• True On-Line, Double-Conversion UPS
• Input Power Factor > 0.99
• Input Current THD < 3%
• 100% Unbalanced Load Capability
• Wide Input Voltage Range +15%, -20% (Without Utilizing Batteries)
• High Efficiency for Lower Operational Cost
• Smallest Footprint & Highest Power Density in Industry
• Electronic Battery Isolation for Battery Longevity
• Generator-Friendly Design & Compatibility
• Complete Front-Access for Installation, Operation, & Service
• Handles Leading Power Factor Loads (Without Derating)
• SNMP/Web-Based Monitoring
• Three-Year Warranty for Lower Cost of Ownership

Smallest Footprint With Highest Power Density

A High Efficiency Design separates the G9000 from the competition. Efficiency greater than 92.5% at 20% loading means lower power losses, reduced air conditioning needs, and reduced utility costs across a wide load range without sacrificing frequency or output voltage stability.

A Transformer-Less Design allows the G9000 to be lighter with a smaller footprint. With its compact size, the G9000 has the highest energy density per square foot of any UPS of similar capacity.

Advanced Features for Maximum Performance

Fast-Switching IGBT Control Technology delivers up to 97% efficiency.

A Full IGBT Rectifier & Harmonic Input Filter reduce input total harmonic distortion (THD) which also reduces heat loss in associated feed equipment and increases component life.

An IGBT DC-to-DC Chopper produces lower DC ripple on the charging circuit, extending battery and capacitor life.

A Hybrid Static-Bypass Switch offers the highest level of dependability.

Improved Output Voltage Regulation provides superior transient response, easily handling 100% step loads without requiring battery support.

A Generator-Friendly Design allows sizing of 1.1 kW generator capacities per 1.0 UPS kVA load.

Robustly Engineered Units are built using the highest quality components to ensure reliability.

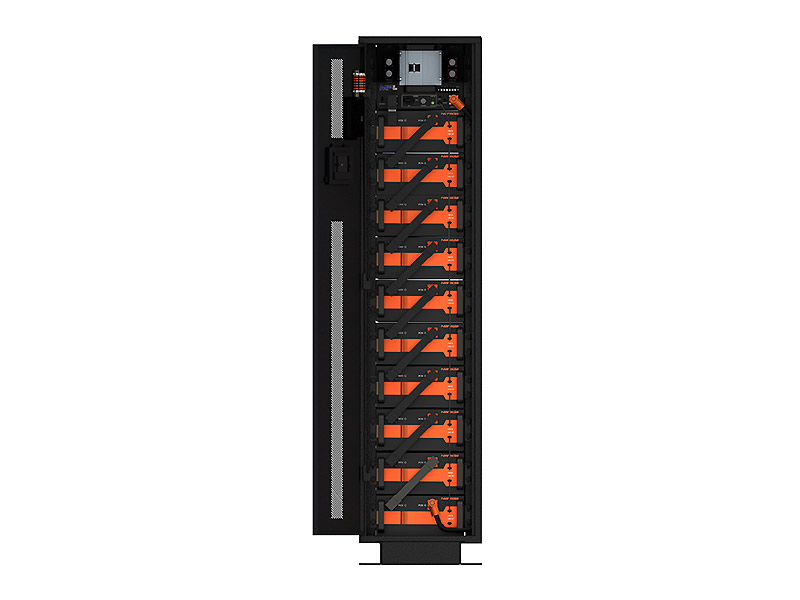

MPINarada MPL High Power Series Lithium Iron Phosphate (LFP) Battery System

The MPINarada MPL High Power Series Lithium Iron Phosphate (LFP) battery systems are designed for high-rate discharges and cover a wide range of UPS solutions. MPLhP systems can operate in temperature ranges up to 35C, while delivering exceptional warranty, safety, and life.

Features:

• System & String Level Protection
• 15-Year Design Life Solution Delivering Up to 188kW
• Lithium Iron Phosphate (LFP) Chemistry Safety
• Standard System HMI Display / Control
• Discharge Down to 3 minutes
• Flexible 51.2V Module Design
• Breaker Standard with BMS Controlled Contactors
• Dry Contact Alarming for UPS Charge and Discharge Control
• VRLA Battery Replacement Ready
• DC Self Powered BMS, No AC Power Drop Required
• Prepopulated System, No On-site Module Assembly
