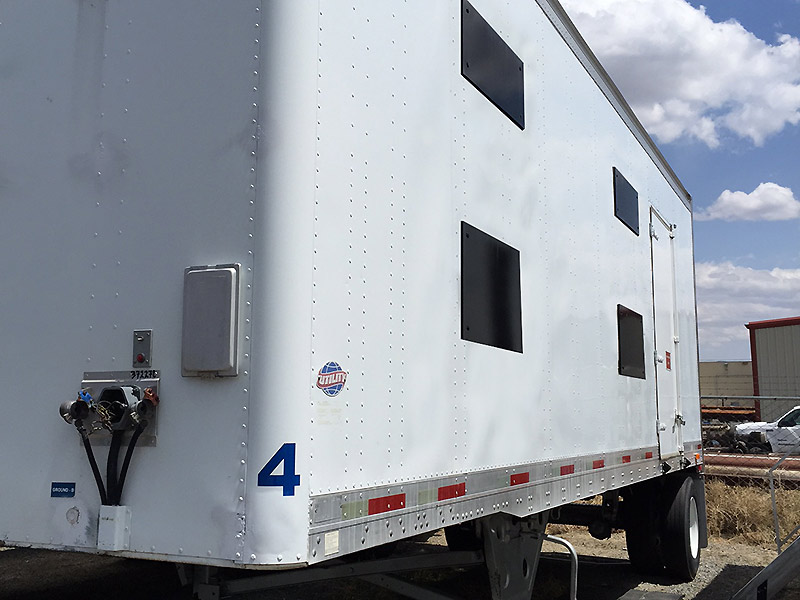

Eaton 9390 160 kVA UPS Trailer Mounted #1
Eaton 9390 160 kVA UPS Trailer Mounted #2
Eaton 9390 160 kVA UPS Trailer Mounted #3
Eaton 9390 160 kVA UPS Trailer Mounted #4
Eaton 9390 160 kVA UPS Trailer Mounted #5
Eaton 9390 160 kVA UPS Trailer Mounted #6
Eaton 9390 160 kVA UPS Trailer Mounted #7
Eaton 9390 160 kVA UPS Trailer Mounted #8
Eaton 9390 160 kVA UPS Trailer Mounted #9
Eaton 9390 160 kVA UPS Trailer Mounted #10
Eaton 9390 160 kVA UPS Trailer Mounted #11
Eaton 9390 160 kVA UPS Trailer Mounted #12
Eaton 9390 160 kVA UPS Trailer Mounted #13
Eaton 9390 160 kVA UPS Trailer Mounted #14
Eaton 9390 160 kVA UPS Trailer Mounted #15
Eaton 9390 160 kVA UPS Trailer Mounted #16
Eaton 9390 160 kVA UPS Trailer Mounted #17
Eaton 9390 160 kVA UPS Trailer Mounted #18
Eaton 9390 160 kVA UPS Trailer Mounted #19
Eaton 9390 160 kVA UPS Trailer Mounted #20
Product Details

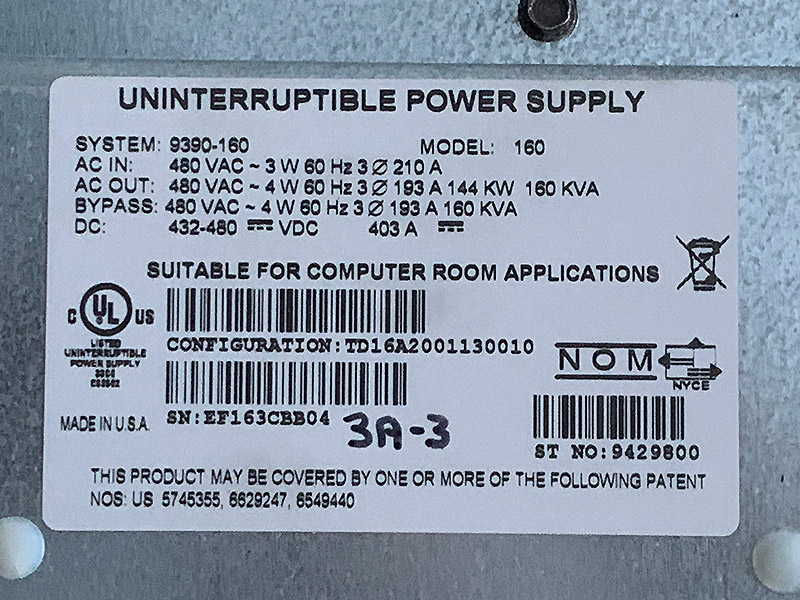

UPS Details |
|
| SKU | 6134 |
| Manufacturer | Eaton |
| Condition | Rebuilt |
| Year | 2018 |
| Model | TD16A2001130010 |
| Model Family | 9390 |
| Serial Number | EF163CBB04 |
| kW | 160 |
| kVA | 160 |
| Phase | 3 |
| Input Voltage | 480 |
| Output Voltage | 480 |
| Input Wiring | 3 wire |
| Output Wiring | 4 wire |

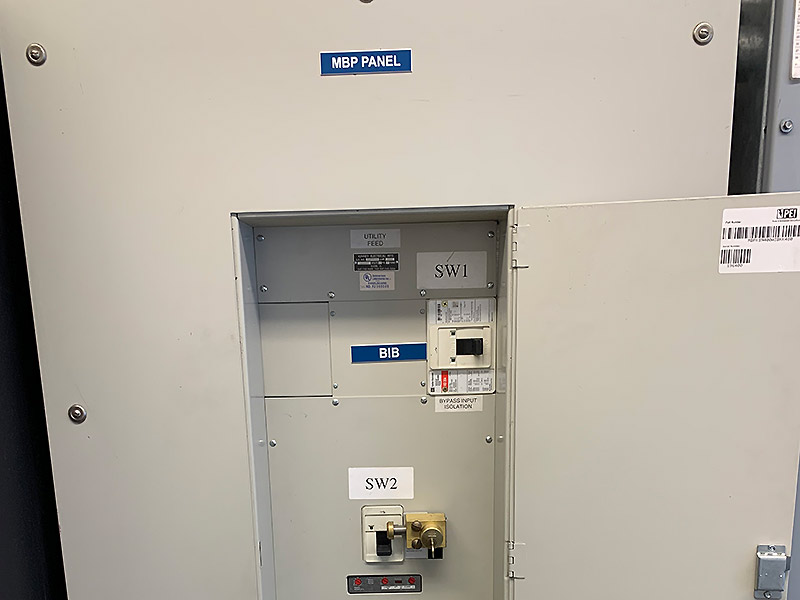

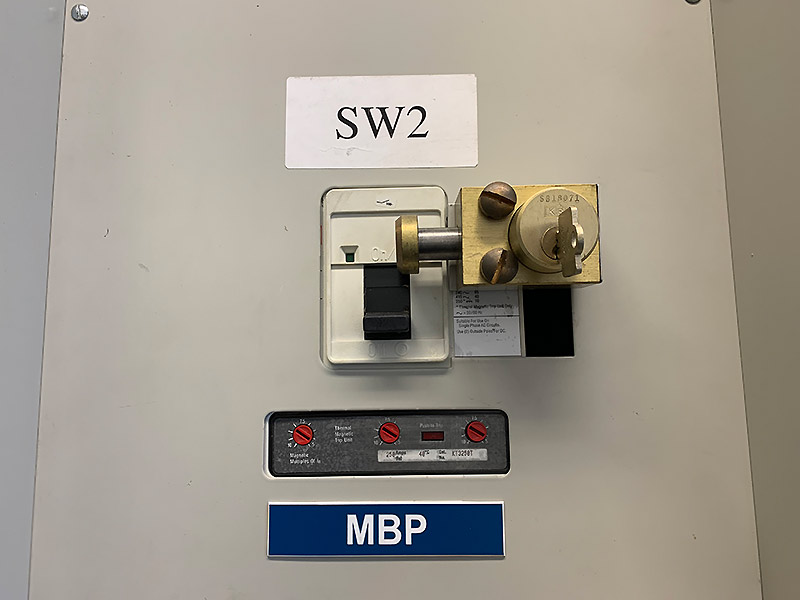

| Maintenance Bypass | Yes |
| Lead Time (Weeks) | 1 to 2 |
| DC Amps | 400 |
| DC Bus Voltage | 480 VDC |
| Input Amperage Max | 210 |
| Input Frequency | 60 Hz |
| Output Amps Max | 193 |
| Output Frequency | 60 Hz |
| Bypass Amps Max | 193 |
| Bypass Voltage | 480 |
| Bypass Wiring | 4 wire |
| Length/Depth (Inches) | 336 |
| Width (Inches) | 104 |
| Height (Inches) | 162 |
| Weight (Lbs) | 25000 |
| ID# | 21115 |

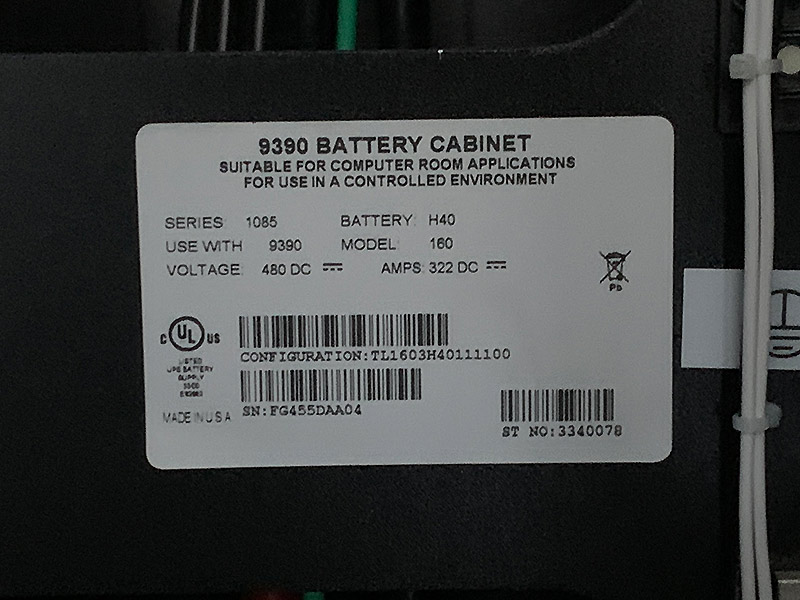

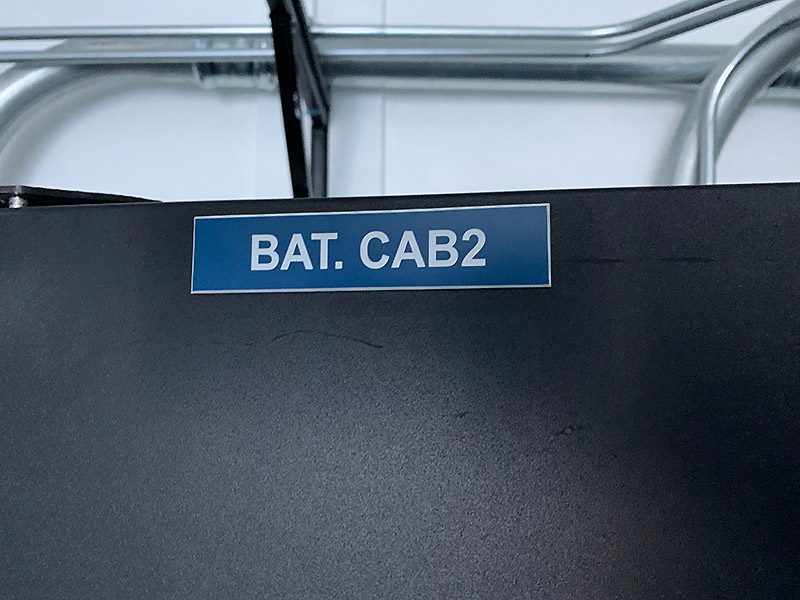

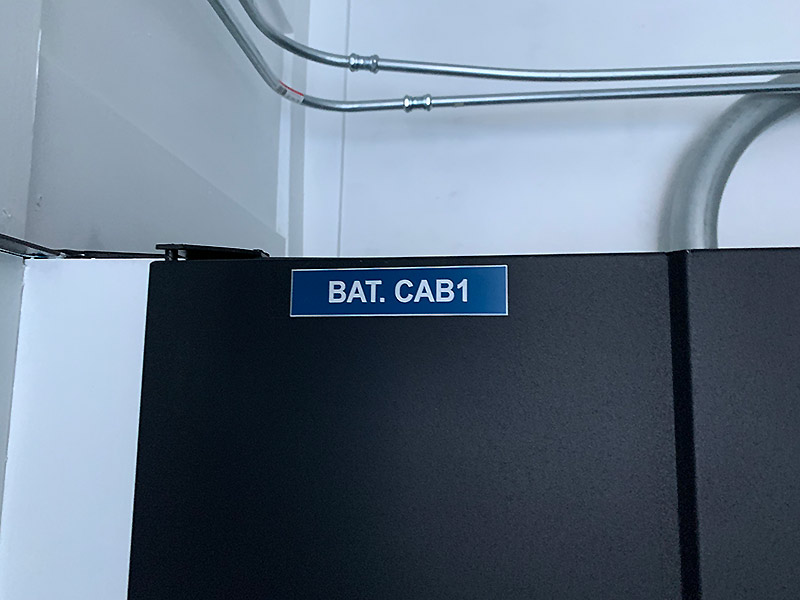

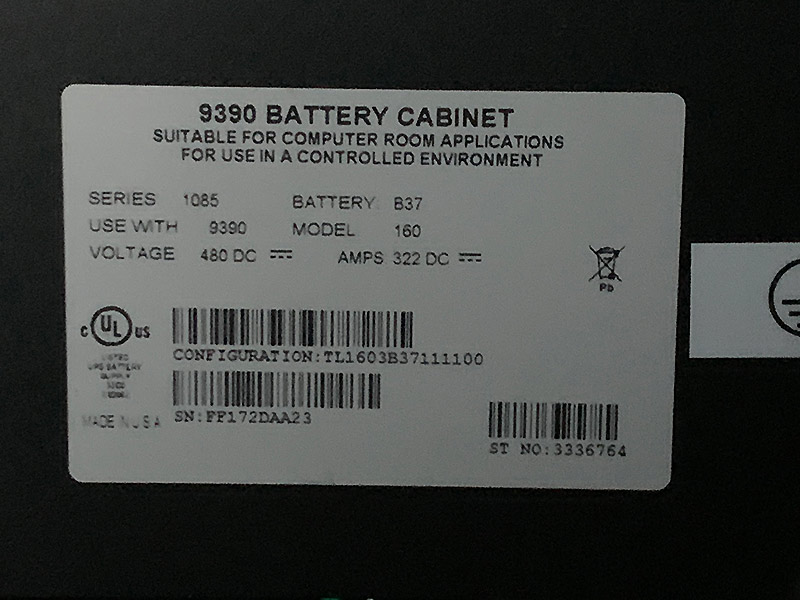

Battery Details |
|
| Battery System | External |
| Batteries Included | Y |
| Battery Type | Lead Acid |
| Battery Duration (Minutes) | 18 |
Notes |
|
