Xtreme Power Conversion Li90 30 kVA (#10383)

Xtreme Power Conversion Li90 UPS - Compact. Powerful. Lithium Safe

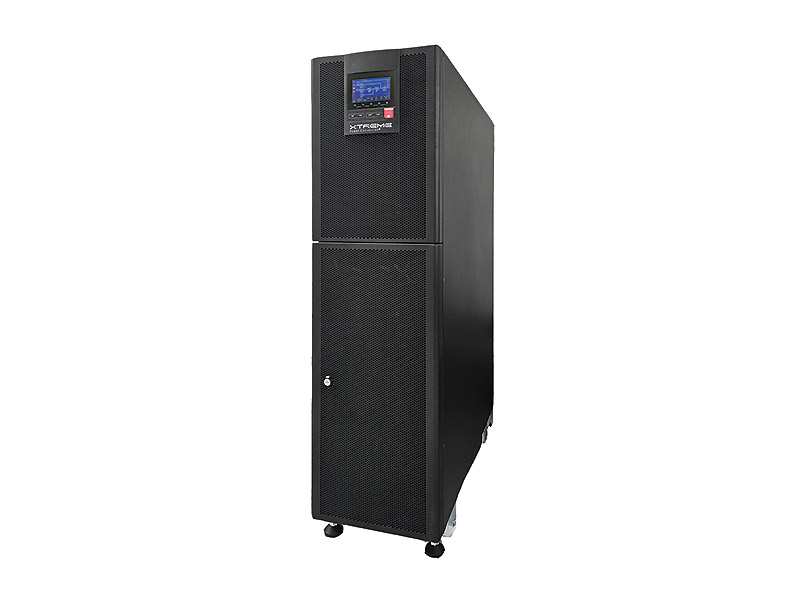

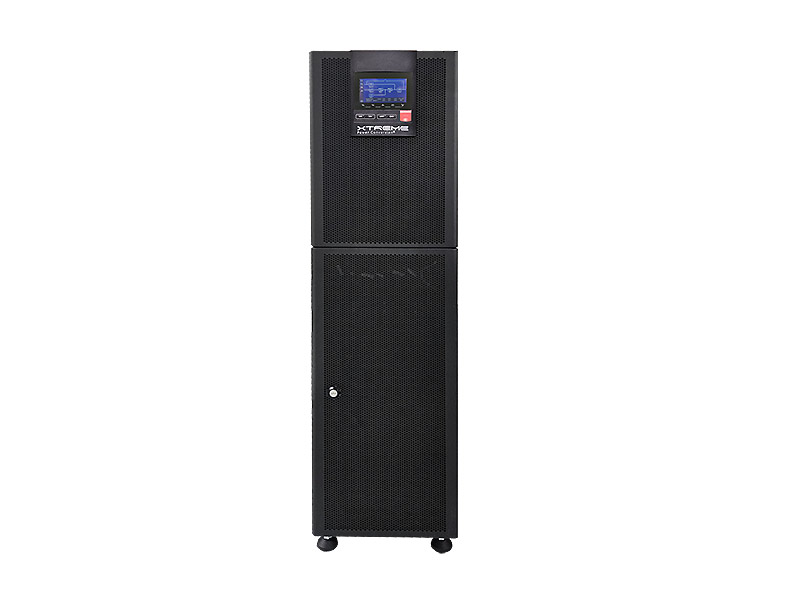

The XPCC Li90 is a compact, high-performance 208V three-phase online uninterruptible power supply (UPS) system that uses advanced Lithium Iron Phosphate batteries, delivering up to three times the lifetime of traditional VRLA systems. It has a narrow footprint, which makes it ideal for tight installations in industrial, edge, and IT environments.

The XPCC Li90 is designed for demanding applications, and provides clean, reliable power in high-temperature conditions up to 50°C. The battery modules are hot-swappable, allowing maintenance without downtime, and it's backed by a 5-year battery warranty and 2-year on-site UPS warranty—offering long-term reliability while also lowering maintenance costs.

Product Snapshot

• Unity Power Factor
• Hot Swappable Battery Modules
• Lithium Iron Phosphate Battery Modules
• Approvals: UL1778, UL38.3, UL1973
• Startup and 2 Year on-site warranty (USA only)
• 5 year battery warranty (USA only)

Features

• Long-Life LiFePO₄ Batteries - Up to 10 years of service life and 2,000+ charge cycles
• Hot Swappable Battery Modules - Fast replacement with no system downtime
• Slim Cabinet Design - Just 12.6” wide, ideal for edge, automation, and retrofit installations
• Touchscreen LCD Interface - 4.3” full-color display with single-line mimic and event logging
• High Overload Capacity - 110% for 60 minutes, 150% for 1 minute - built for surges and startup loads
• Maintenance Bypass - Integrated bypass allows safe, on-site service without shutdown
• Smart De-Dust Fans - Self-cleaning fans help extend service life
• Conformal Coated PCBs - Enhanced protection in industrial and high-humidity environments
• Flexible Input Options - Supports single or dual input (rectifier & bypass); preinstalled jumpers included
• Advanced Communication - 2 card slots, RS485, USB, EPO, 1 input & 5 output dry contacts; optional SNMP
