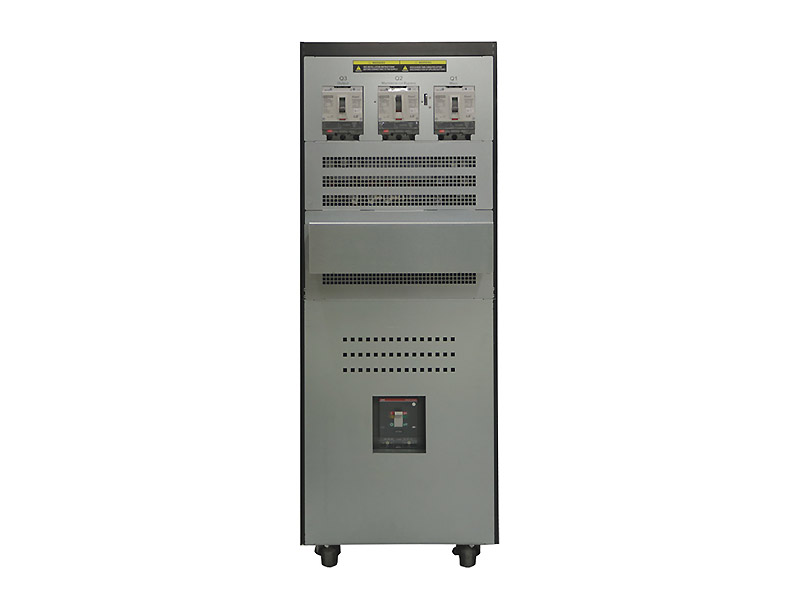

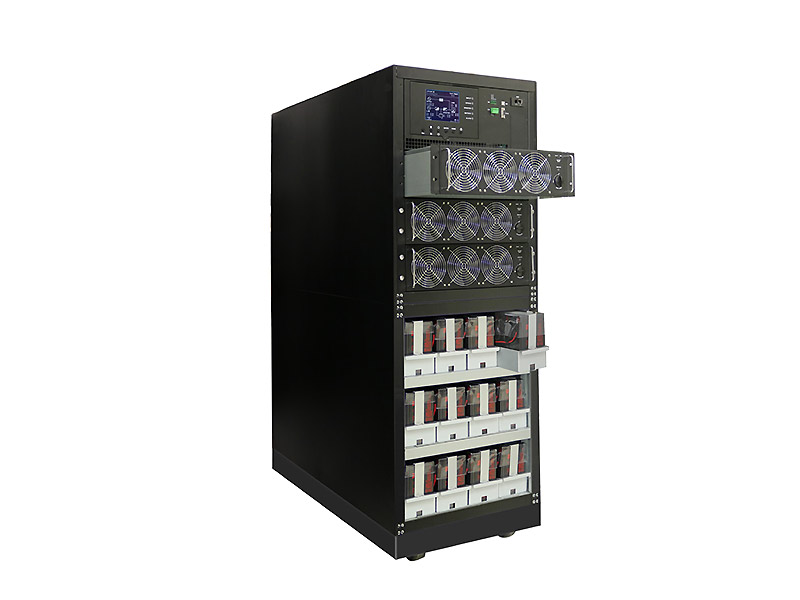

Xtreme Power Conversion M90U 20 kVA (#9942)

Mission Critical Availability with Scalable, Modular Unity Power Factor Output

The M90U is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.

M90U can be configured with a fully redundant power module and battery modules. Should one module fail, the remaining modules smoothly take over the load. The power modules are independent and can be hot swapped without risk to the critical load.

Product Snapshot

• Capacities: 15kVA/15kW, 20kVA/20kW, 30kVA/30kW, 40kVA/40kW, 45kVA/45kW, 60kVA /60kW
• Hot swappable power modules
• Up to 94% online mode or 98% ECO mode
• UL-1778, cUL, FCC A, RoHS, TAA (select models)
• 2 year electronics, 2 year battery warranty (USA and Canada)

Features

• Unity output power factor - M90U systems provide more real capacity for high density loads
• Scalable - when power and runtime requirements change M90U modularity makes it easy to add modules and increase capacity
• Highest availability - system can be configured with redundant power and battery modules
• Reduce energy cost - best-in-class energy efficiency provides lowest energy consumption and heat output
• Dual or single utility input - provides maximum installation flexibility
• Maintenance bypass - manually transfer critical loads from UPS power to utility power, enabling M90 maintenance
• Large LCD display - 5.7” display provides graphic display including status and alarms
• Mounting - Standard Floor Mount Brackets included. Seismic Hold Down Anchorage available
