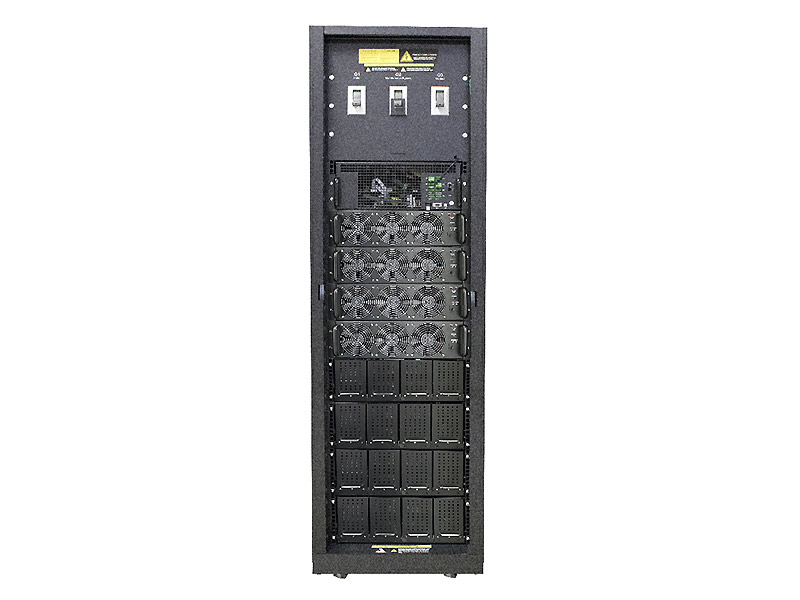

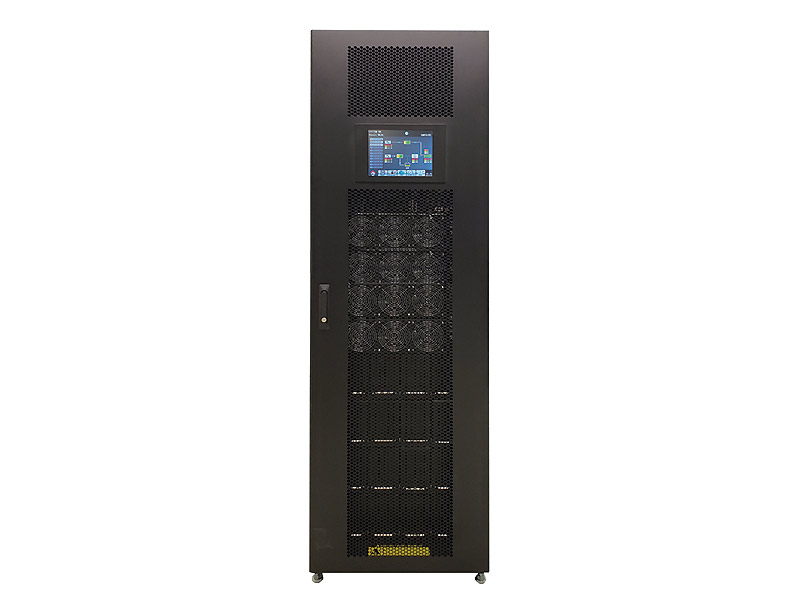

Xtreme Power Conversion M90U80 60 kVA (#9948)

Scalable, Modular UPS for Mission Critical Availability

The M90U-80 is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.

M90U-80 can be configured with a fully redundant power module and battery modules. Should one module fail, the remaining modules smoothly take over the load. The power modules are independent and can be hot swapped without risk to the critical load.

Product Snapshot

• Capacities: 15kVA/15kW, 20kVA/20kW, 30kVA/30kW, 40kVA/40kW, 45kVA/45kW, 60kVA /60kW, 80kVA /80kW
• Hot swappable power modules
• Up to 94% online mode or 98% ECO mode
• UL-1778, cUL, FCC A, RoHS, TAA (select models)
• 2 year electronics, 2 year battery warranty (USA and Canada)

Features

• Unity output power factor - M90U-80 systems provide more real capacity for high density loads
• Scalable - when power and runtime requirements change M90U-80 modularity makes it easy to add modules and increase capacity
• Power module ratings - 15kVA/15kW or 20kVA/20kW modules available
• Modular static switch - for easier maintenance
• Maintenance bypass - front mounted MBP switch transfers critical loads from UPS power to utility power, enabling maintenance
• Large Touchscreen LCD display - 10” display provides graphic display including status and alarms
• Dual or single utility input - provides maximum installation flexibility
