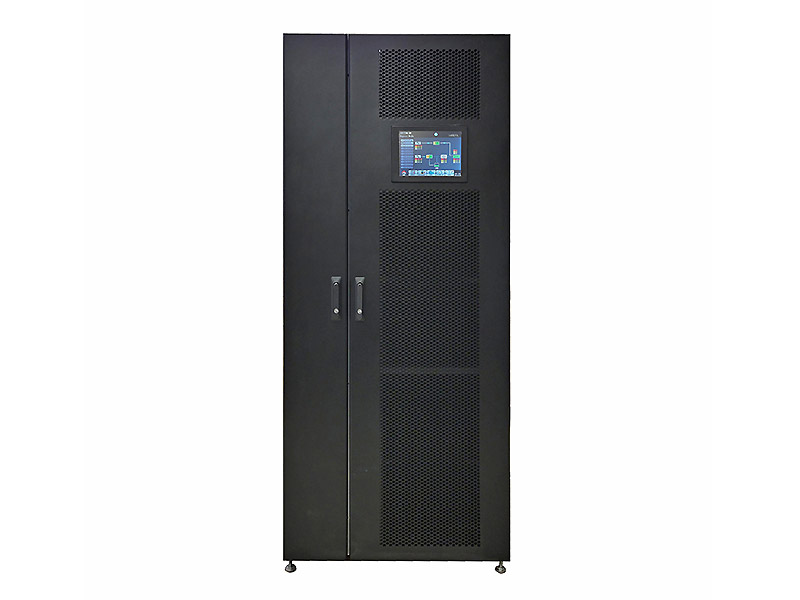

Xtreme Power Conversion X905S 350 kVA (#9249)

XTREME POWER CONVERSION X90-5S

5 Slot Modular Online UPS, 480VAC 4W Three-Phase.

Scalable, Modular, Compact 480V UPS.
The X90-5S is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.
Optional 65kAIC maintenance bypass in slim matching cabinet providing the most compact footprint and reduced installation costs.

PRODUCT SNAPSHOT
Capacities: 50kW, 70kW, 100kW, 140kW, 150kW, 200kW, 210kW, 250kW, 280kW, 350kW
65kAIC Rating

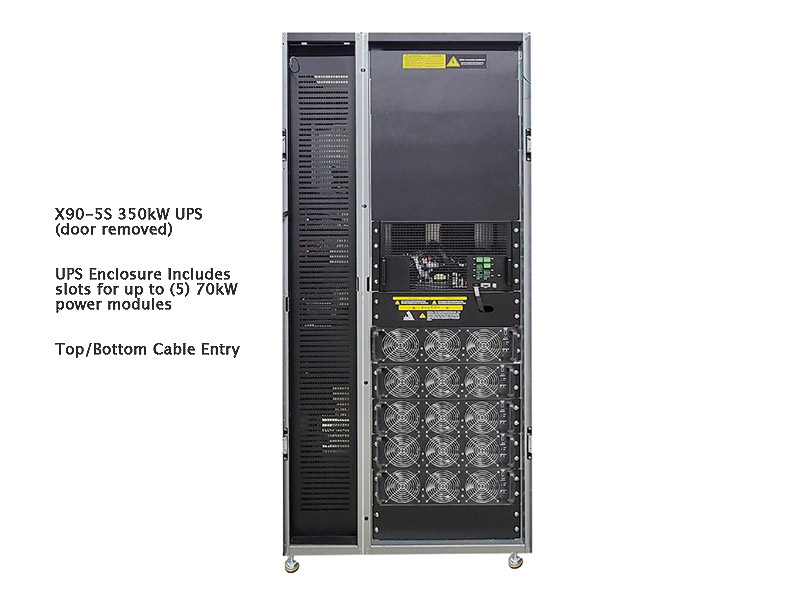

Hot swappable power and battery modules
UL-1778, cUL, FCC A, RoHS, TAA
2 year warranty (USA and Canada)

FEATURES
Highest availability - system can be configured with redundant power and battery modules.

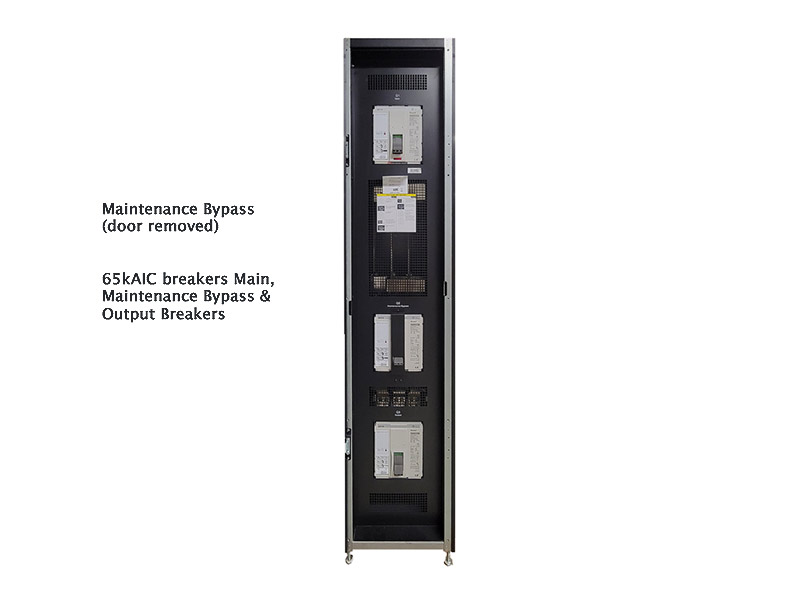

Maintenance bypass - optional slim maintenance bypass enables service and repair.
Reduce energy cost - online efficiency up to 96.5% and ECO mode up to 99%.
Scalable - add power or battery modules when requirements change.
Power module ratings - 70kW modules available.
Full front access - no rear clearance required for maintenance.

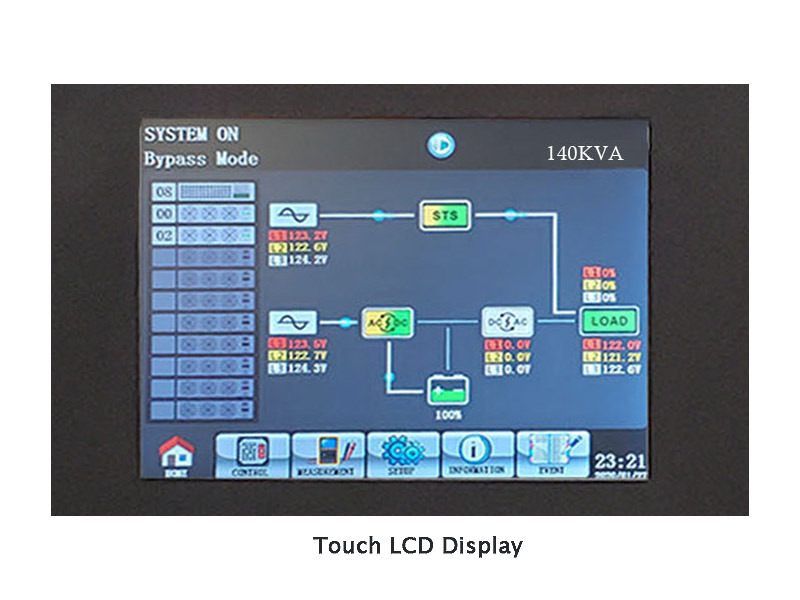

Large Touchscreen LCD display - 10" display provides graphic display including status and alarms.
Dual or single utility input - provides maximum installation flexibility.
Cable Access - top or bottom cable access.
