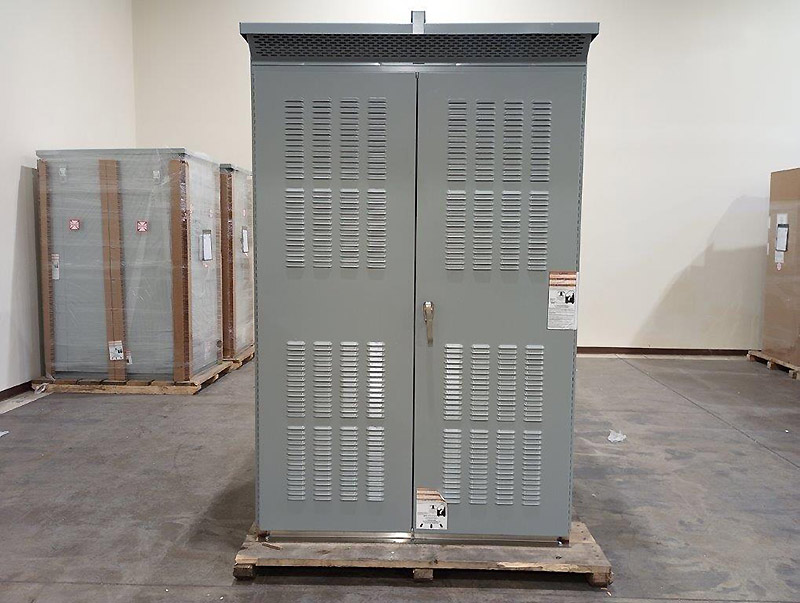

ASCO 4000A Series 7000 (#10298)

ASCO 7000 SERIES Automatic Transfer Switches

ASCO 7000 SERIES Power Transfer Switches provide unmatched reliability and sophisticated control for the most demanding mission-critical backup power needs.

Every 7000 SERIES transfer switch is engineered-to-order to optimize switch functionality and provide facilities with the best solution for their specific application, and custom-engineering is available to meet any transfer switching need.

Backed by industry-leading technical support and service knowledge derived from a century of critical power switching experience, the 7000 SERIES solves the most demanding critical power challenges facing facilities today.

ASCO Power Transfer Switches - The Standard of the Industry

ASCO Power Transfer Switches are the standard of the industry. High-speed transfer of loads between alternate sources of power, regardless of ampacity, is achieved using a reliable, field-proven solenoid operating mechanism.

• Listed to UL 1008 Transfer Switch Equipment and Certified to CSA 22.2, No. 178
• Qualified and certified to IEC 60947-6-1, optional CE mark
• Rated up to 600 VAC, 30 through 4000 amps
• 3 to 18-Cycle Withstand and Close-on Rating Standard, 30-Cycle WCR Optional
• Front-replaceable main and arcing contacts on 800-4000 amp models
• Central terminal block for control connections on 260-4000 amp models
• Multiple auxiliary contacts for switch status indication
• Local and remote communications for serial and ethernet monitoring systems such as ASCO monitoring solutions or 3rd party BMS
