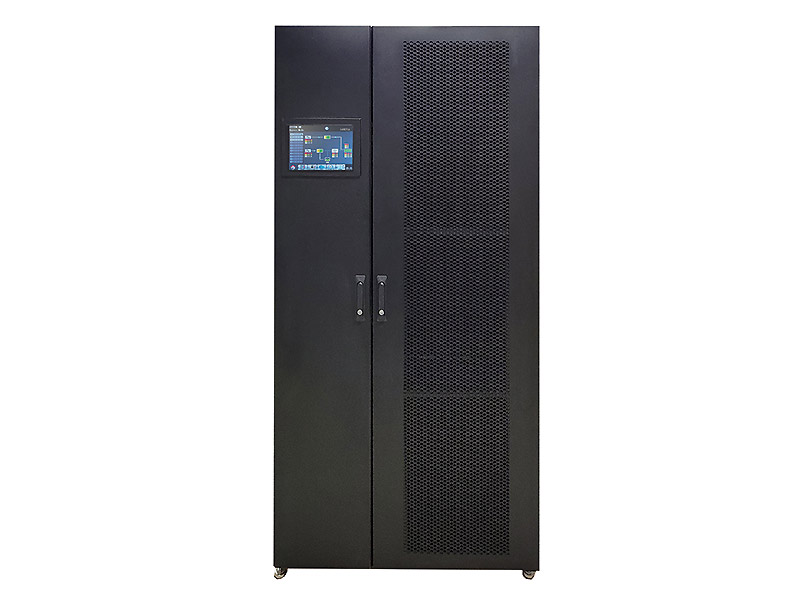

Xtreme Power Conversion X9010S 560 kVA (#9880)

XTREME POWER CONVERSION X90-10S

10 Slot Modular Online UPS - 480VAC 3W Three-Phase.
Scalable, Modular, Compact 480V UPS.
TThe X90-10S is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.
Optional 65kAIC maintenance bypass in slim matching cabinet providing the most compact footprint and reduced installation.

UPS SYSTEM PRODUCT SNAPSHOT

Capacities (70 kW modules): 70kW, 140kW, 210kW, 280kW, 350kW, 420kW, 490kW, 560kW, 630kW, 700kW
Capacities (50 kW modules): 50kW, 100kW, 150kW, 200kW, 250kW, 300kW, 350kW, 400kW, 450kW, 500kW
65kAIC Rating
Hot swappable power modules
UL-1778, cUL, FCC A, RoHS, TAA, Energy Star
2 year warranty (USA and Canada)

UPS SYSTEM FEATURES

Highest availability - system can be configured with redundant power and battery modules.
Maintenance bypass - optional slim maintenance bypass enables service and repair.
Reduce energy cost - online efficiency up to 96.5% and ECO mode up to 99%.
Large Touchscreen LCD display - 10” display provides graphic display including status and alarms.
Power module ratings - 50kW or 70kW available.
Dual or single utility input - provides maximum installation flexibility.
Scalable - add power modules when requirements change.
Cable Access - top cable access is standard. Optional 6” side car kit is available for bottom entry.
Cable Access - top or bottom cable access.
