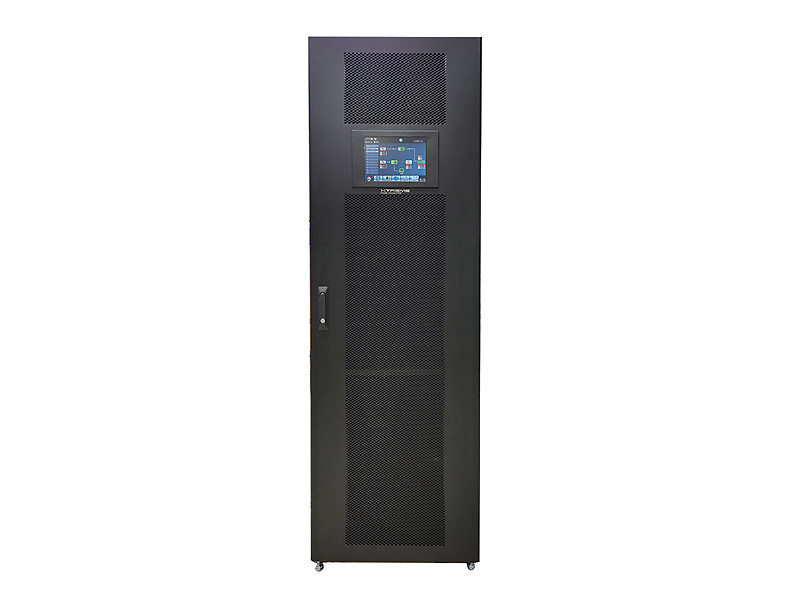

Xtreme Power Conversion X902S 100 kVA (#9876)

XTREME POWER CONVERSION X90-2S

2 Slot Modular Online UPS - 480VAC 3W Three-Phase.
Scalable, Modular, Compact 480V UPS.
The X90-2S is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.
The fully integrated X90-2S UPS includes maintenance bypass and batteries (up to 100kW) in single cabinet providing the most compact footprint and simplifying installation.

UPS SYSTEM PRODUCT SNAPSHOT

Capacities: 50kW, 70kW, 100kW, 140kW
65kAIC Rating
Hot swappable power and battery modules
UL-1778, cUL, FCC A, RoHS, TAA, Energy Star
2 year warranty (USA and Canada)

UPS SYSTEM FEATURES

Highest availability - system can be configured with redundant power and battery modules.
Maintenance bypass - integral front bypass enables maintenance and repair.
Reduce energy cost - online efficiency up to 96.5% and ECO mode up to 99%.
Large Touchscreen LCD display - 10” display provides graphic display including status and alarms.
Power module ratings - 70kW modules available.
Dual or single utility input - provides maximum installation flexibility.
Internal Batteries - internal batteries provide up to 6 minutes at 100kW load.
Cable Access - top cable access is standard. Optional 6” side car kit is available for bottom entry.
Full front access - no rear clearance required for maintenance.
