Product Details
Battery System: Internal
Battery Type: (48) 12-100’s
Bypass Amps Max: 125.0
Bypass Voltage: 208/120 4 wire
Bypass Wiring: 4 wire
Condition: Used
DC Amps: 166
DC Bus Voltage: 288
Height (Inches): 79.0
Input Amperage Max: 150.0
Input Frequency: 60 Hz
Input Voltage: 208/120 4 wire
Input Wiring: 4 wire
Internal Batteries: Yes
Internal Battery Size: (48) 12-100’s
kVA: 45
kW: 45.0
Length/Depth (Inches): 40.0

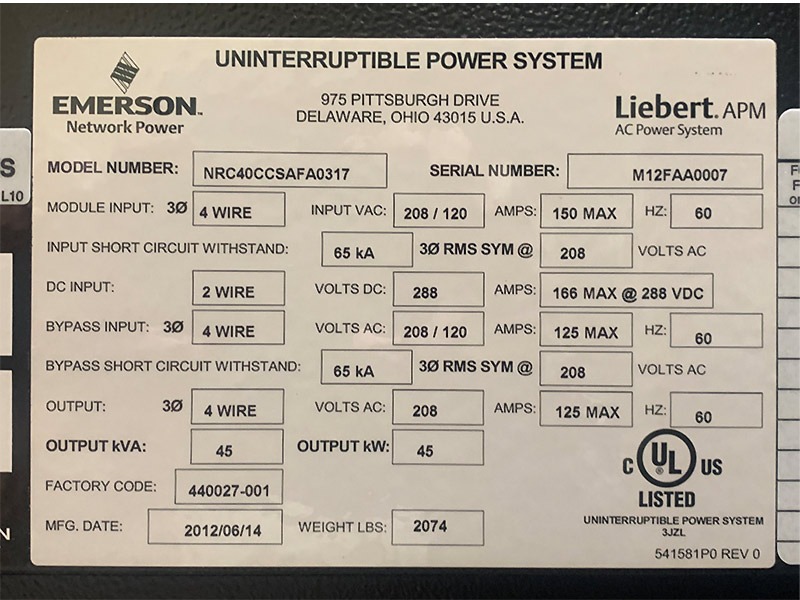

Model: NRC40CCSAFA0317
Model Family: APM 45/45
Output Amps Max: 125.0
Output Frequency: 60 Hz
Output Voltage: 208 4 wire
Output Wiring: 4 wire
Phase: 3 Phase
Serial Number: M12FAA0007
Shipping Info Misc: 52x 40x 84
SKU: 6602
Weight (Lbs) : 2,074.0
Width (inches): 32.0
Year: 2012
