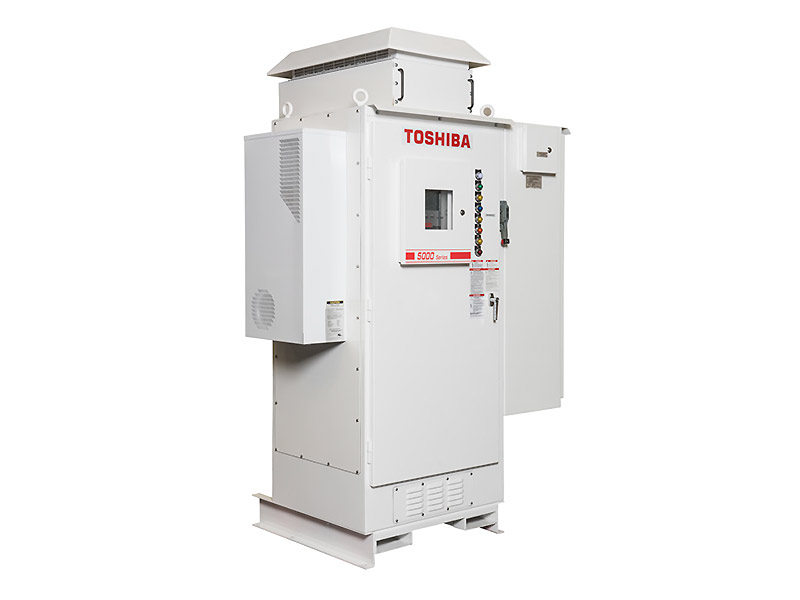

Toshiba 5000 Series Compact 30 kVA

The Toshiba 5000 Series Industrial three-phase uninterruptible power system (UPS) is purpose built for industrial applications. The UPS enclosure is weatherproofed to NEMA 3R, resistant to falling dirt, rain, sleet, and snow, making it suitable for installation in both indoor and outdoor industrial settings.

The double conversion, all insulated-gate bipolar transistor (IGBT) 5000 Series UPS features a digitally controlled IGBT input rectifier, an intelligent low harmonic pulse-width modulation (PWM) output, state-of-the-art electronic battery isolation circuitry, and an easy to navigate local touchscreen interface. The Compact model shown here combines all of these features in an under 16 ft2 footprint.
