Hipower 30 kVA Hybrid

HIPOWER® EHR Hybrid Benefits

• Reduced System Emissions
• Reduced Fuel Consumption
• Reduced Noise Intervals
• Reduced PM and Service Intervals
• Transportation and Space Efficient
• Remote Monitoring and Access
• Increased Load Response
• Improved Load Up-time
• Renewable Integration

HIPOWER® EHR Hybrid generators are an efficient, reliable and versatile source of mobile electrical power. Designed to operate in the most extreme working conditions. All HIPOWER® EHR Hybrid Generators combine an innovative design and the use of high quality materials that provide the user with the most dependable power that you can rely on for nonstop power with easy to operate controls. The EHR Hybrid generator will prevent unncessary light loading and oversizing by using the inverters and batteries to power the load and the generator as support. The HIPOWER EHR Hybrid generators are designed to optimize energy production, and sustainability, while at the same time reducing total system emissions.

HIPOWER® Features

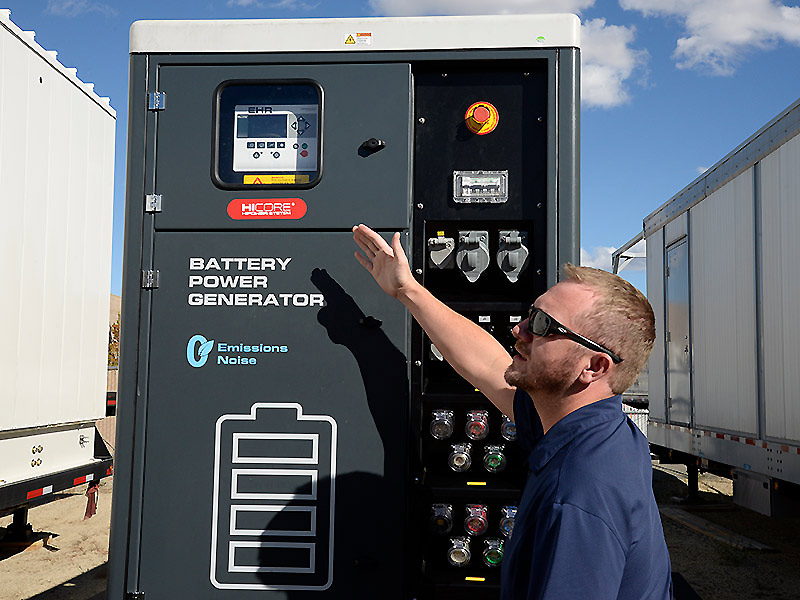

EHR Battery Generator: Energy Storage and Distribution system. Pure Sine Wave Inverters are able produce clean AC signal to power loads safely. The pre-configured working mode selector allows the EHR Hybrid to be configured for different applications or modes of use, including Plug and Play, Light Load, Peak Shaving, and UPS.

Controls: HICORE, smart load management system is a user-friendly interface designed by HIPOWER to simplify operation and allows the user to select the most favorable working mode for any application. Load Connections: Cable power outlets, receptacles, lugs and Camloks. ISUZU Diesel Engine: Tier 4 Final, Long-life, heavy-duty, 4-cycle, direct injection engine for economy of operation and maximum reliability and durability.

Cooling: Radiator with belt driven pusher fan.

Fuel Tank: Environmentally friendly steel base welded sub-base fuel tank with internal filling system and 110% containment capability for any diesel fuel, coolant or engine oil spills. Easy access for maintenance activities.

Renewable Energy: Ready to connect to Plug& Play PV Panels. Includes up to 8 kW MPPT modules so all HIPOWER EHR Hybrid Generators can integrate renewable energies into any working mode, further increasing efficiency.

Connectivity: Smartphone App (Remote Confi guration, Maintenance & Diagnostics)/ Web Portal/3G/4G Remote Communication, Dual SIM Modem/Router included with EHR Battery Generator.

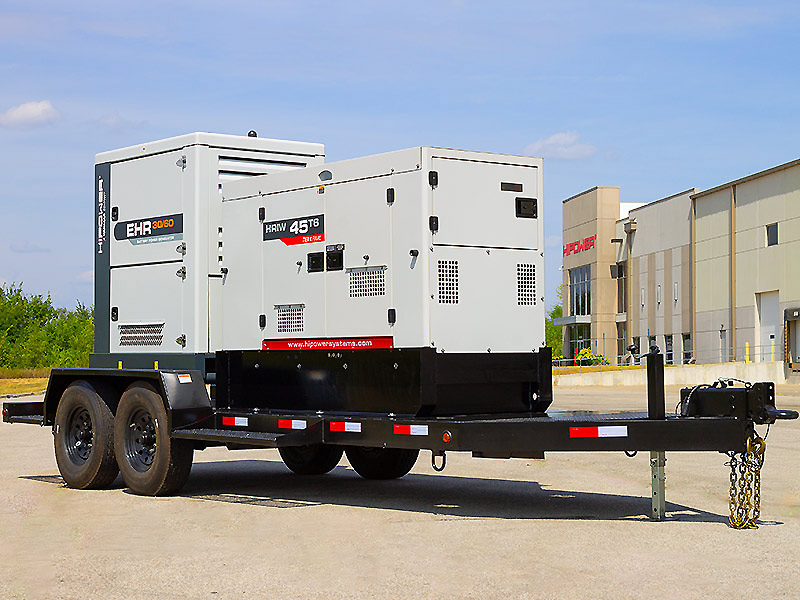

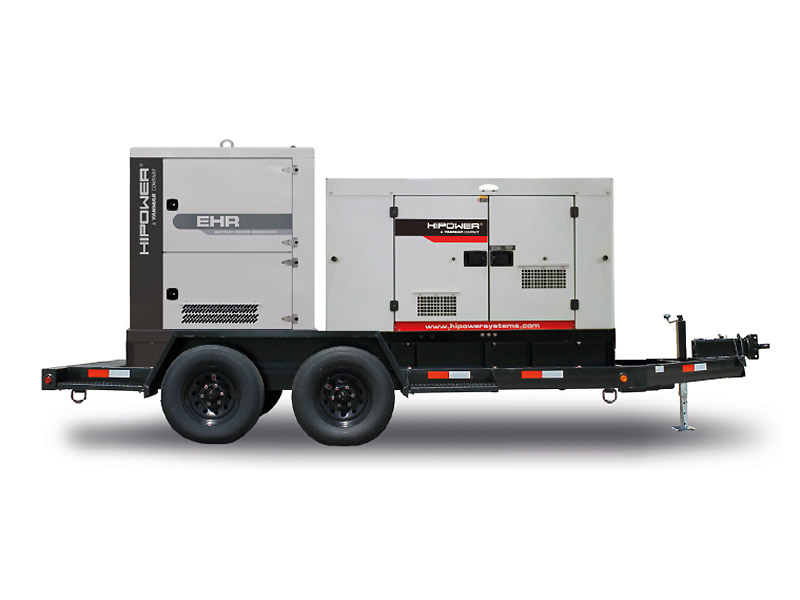

Transportation and Space Efficiency: Increased Transportation and Workforce efficiency by having a complete hybrid package on a single trailer. Reduced footprint for hybrid package allowing for more efficient use of space.
